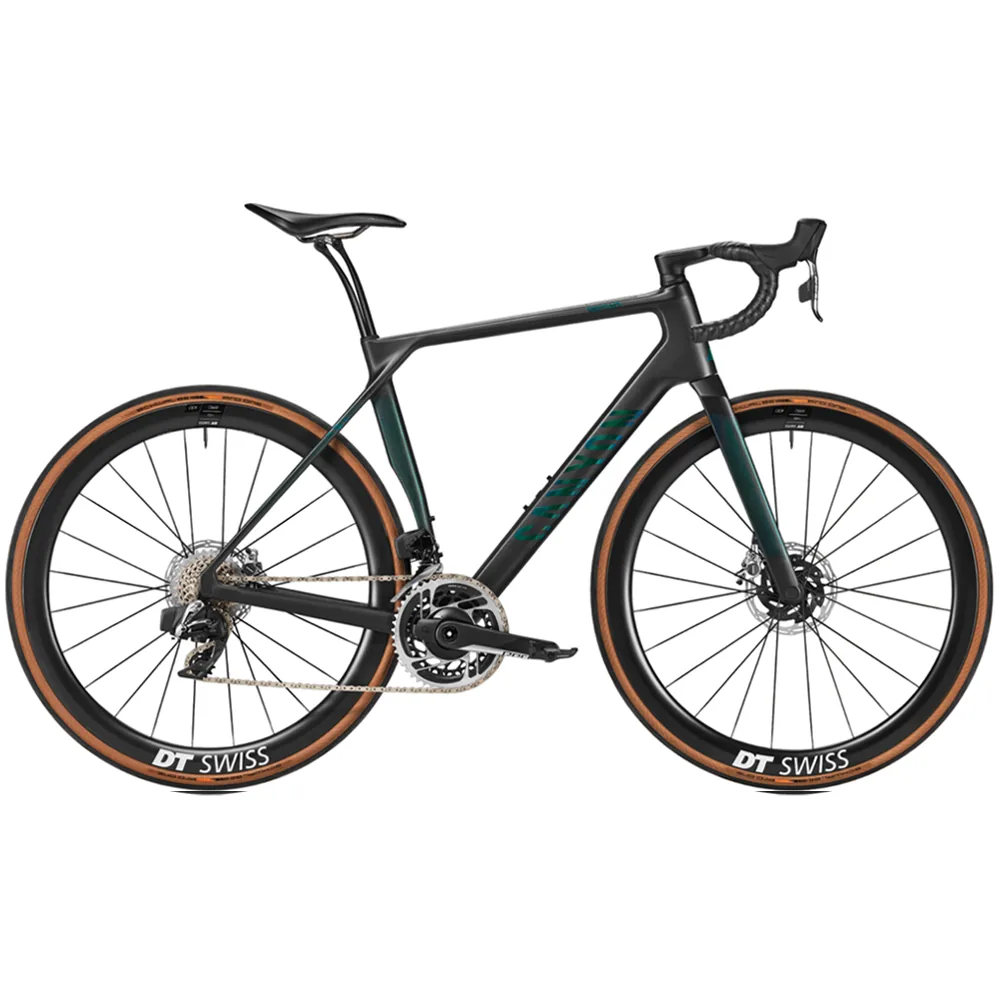

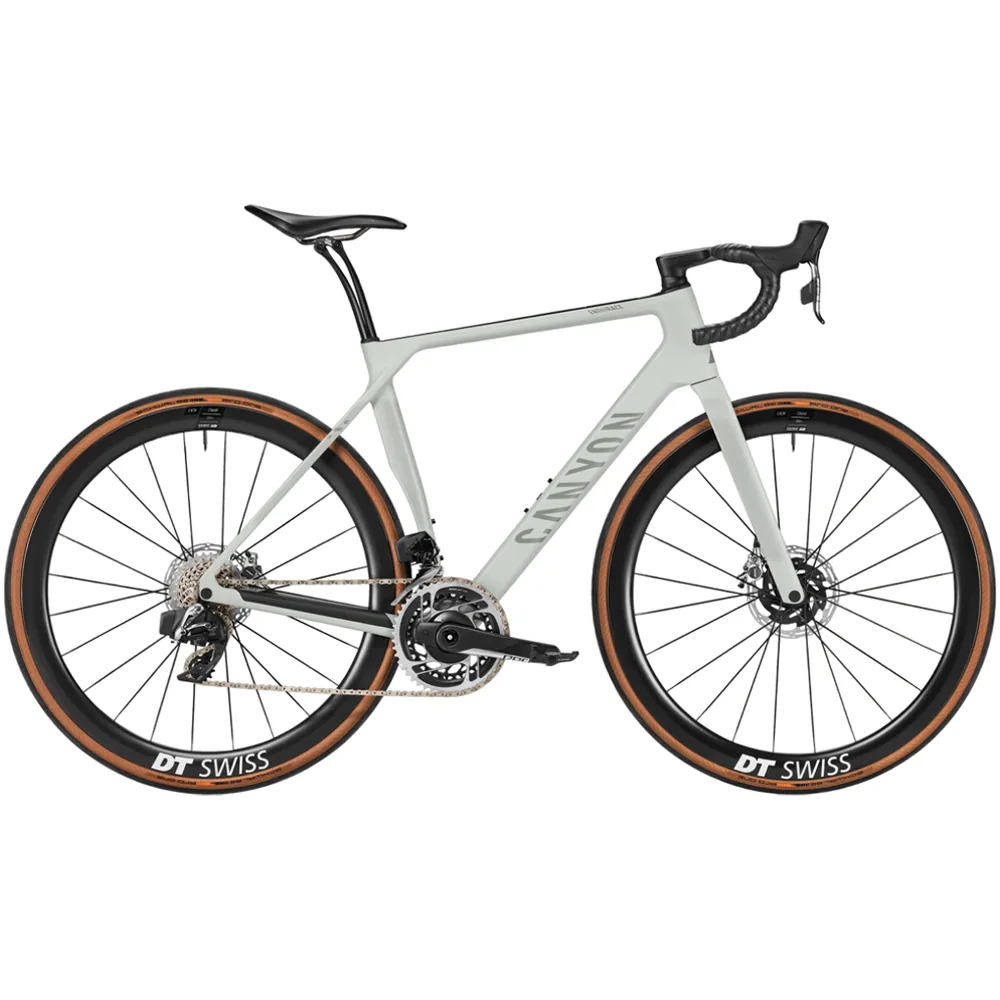

2023 Canyon Endurace CFR AXS Road Bike

Product Description

2023 CANYON ENDURACE CFR AXS ROAD BIKE

CFR: world-class carbon

With its benchmark stiffness-to-weight, the Endurace CFR’s frame is the embodiment of Canyon’s world-class carbon engineering expertise. The finest materials. Advanced lightweight engineering. Super-thin construction, with no drawbacks in terms of toughness thanks to specially placed reinforcement patches. This is the frame to beat.

An aerodynamic, easily adjustable carbon cockpit

Dial in your perfect riding position – with three distinct width positions and a selection of different size spacers, pick from up to 12 distinct configurations, all without having to take a saw to your fork shaft. The cockpit also neatly integrates all cables and lines for extra aero gains.

Ride-saving tools at your fingertips

Go Long with total confidence. Our neoprene Tool Sleeve fits perfectly inside the Endurace's top tube storage compartment – simply fill it with tools to help you out when you need it most. We recommend the Endurace LOAD Top Tube Storage bundle, available separately and including a Canyon 3-in-1 Minitool, CO2 cartridge, and tyre levers.

The benchmark of carbon seatpost design

Providing 20 mm of vertical deflection in a sleek package, the S15 VCLS 2.0 seatpost is simple, elegant, and beautifully effective. Its innovative carbon leaf spring construction feels firm when you’re on the flats but absorbs jolts and vibrations to take the edge off the harshest surfaces, so you feel fresher on long rides over mixed surfaces.

SPECIFICATION :

Frame Canyon Endurace CFR Axle dimension: 12x142 mm Tyre Clearance: 35 mm Material: Carbon (CFR)

Fork Canyon FK0128 CF Disc Axle dimension: 12x100 mm Material: Carbon (CF)

Battery SRAM Powerpack

Rear Derailleur SRAM RED eTap AXS 12s

Front Derailleur SRAM RED eTap AXS

Cassette SRAM RED XG-1290 10-33 12s Number of sprockets: 12

Crank SRAM RED AXS Powermeter Number of chainrings: 2

Bottom bracket SRAM Pressfit RED DUB Bottom bracket standard: PF 86,5

Chain SRAM RED D1 12s With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.

Shift-/ Brake Lever SRAM RED eTap AXS HRD, 12-speed

Shift-/ Brake Lever SRAM RED eTap AXS HRD, 12-speed

Brake Rotor SRAM Centerline X Size: 160 mm

Wheel DT Swiss ERC 1100 Dicut Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 45 mm Wheelsize: 28"

Wheel DT Swiss ERC 1100 Dicut Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 45 mm Wheelsize: 28"

Tyre Schwalbe Pro One TLE, 30mm Wheelsize: 28"

Tyre Schwalbe Pro One TLE, 32mm Wheelsize: 28"

Thru Axle DT Swiss through axle without lever Axle dimension: 12x100 mm

Thru Axle DT Swiss through axle with lever Axle dimension: 12x142 mm

Cockpit Canyon CP0018 Aerocockpit Aero design, reinforced carbon walls for added stiffness and improved durability. Easy width adjustment: +/-20 mm Cut-free height adjustment: 15 mm Material: Carbon (CF)

Handlebar Tape Canyon Ergospeed Gel Color: black

Saddle Saddle Fizik Aliante R1 145

Seatpost Canyon S15 VCLS 2.0 CF Material: Carbon Setback: 13 mm / 25 mm Technology: VCLS 2.0 | Fliphead Weight: 220 g

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Instruction SRAM ETP

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Canyon Endurace Quick Start Guide

Manuals and Accessories Canyon starter box
