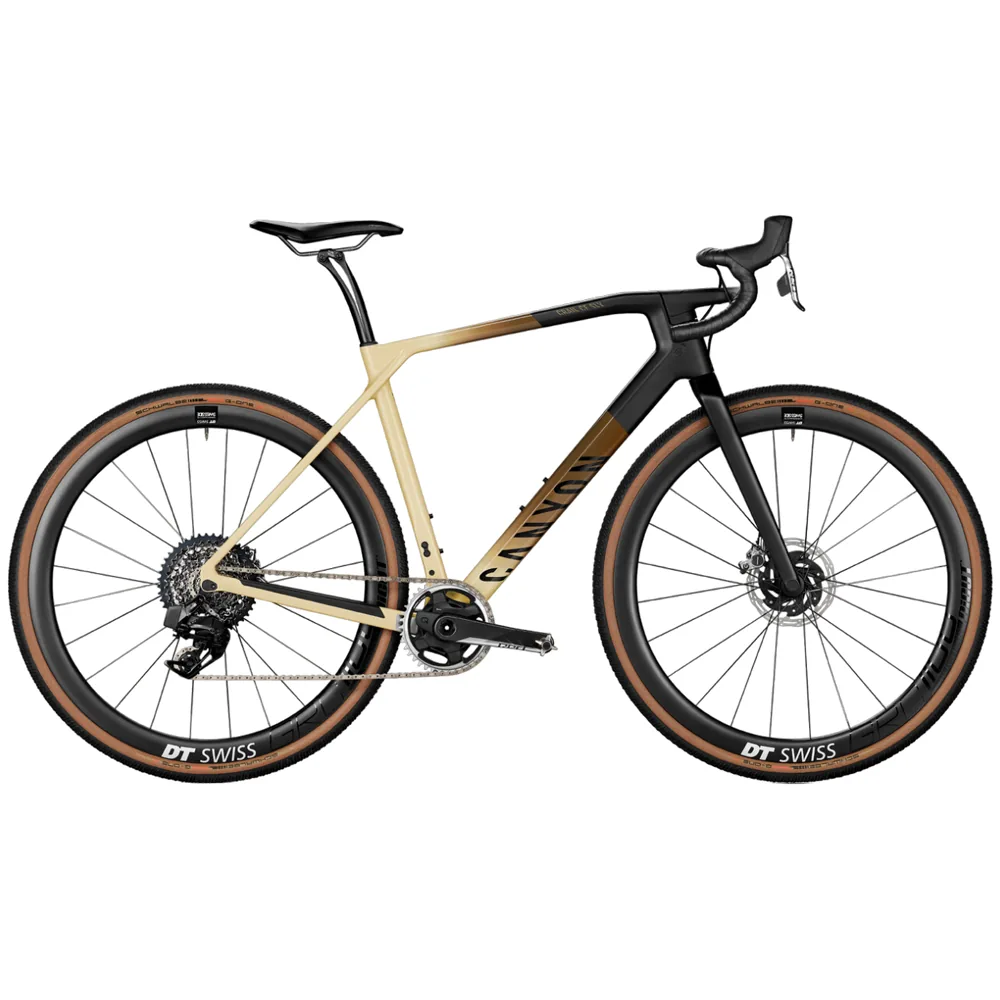

2023 Canyon Grail CF SLX 9 eTap Road Bike

Product Description

2023 CANYON GRAIL CF SLX 9 ETAP ROAD BIKE

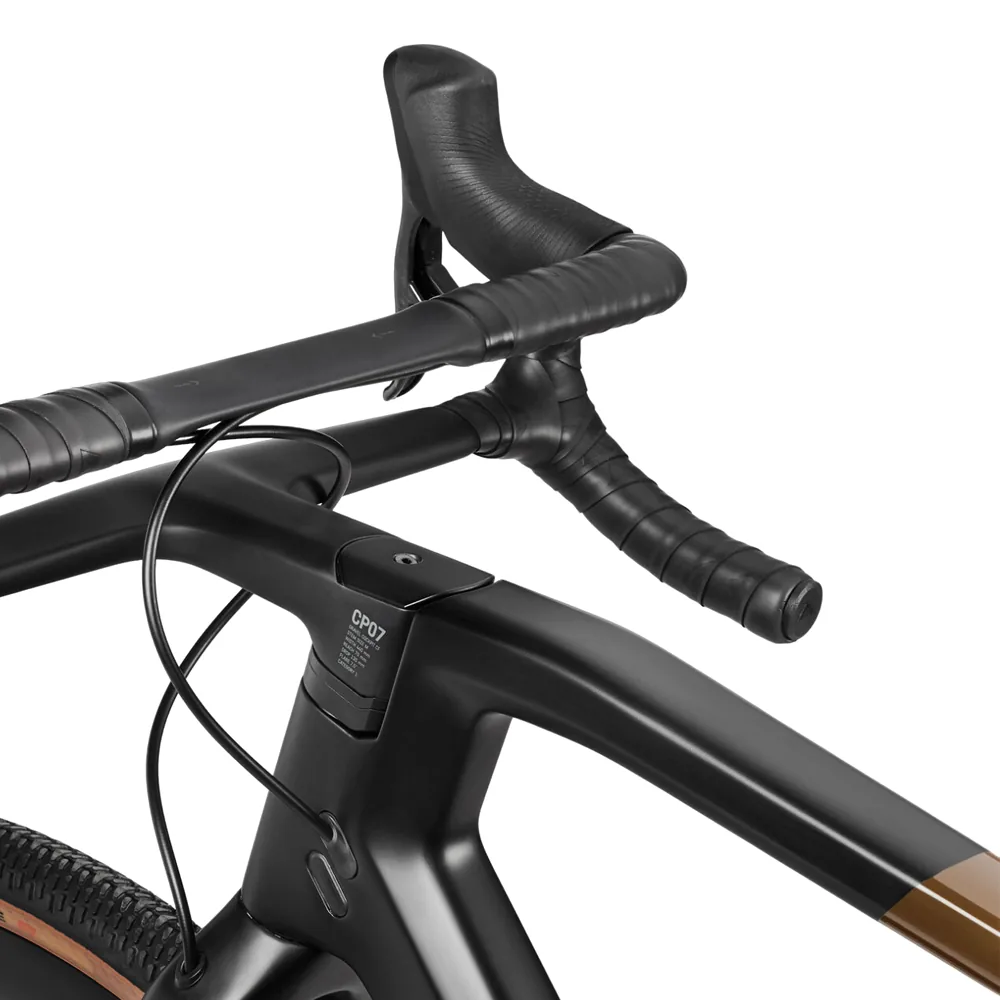

Innovative, comfortable gravel cockpit

The cockpit has a unique two-tier design: on the upper level, a carbon Flex Area gives you the shock-absorbing comfort you need over gravel and forest tracks. On the drops, the carbon is formed to provide maximum stiffness for quick descending and all-out sprinting.

Clean, slick aesthetics

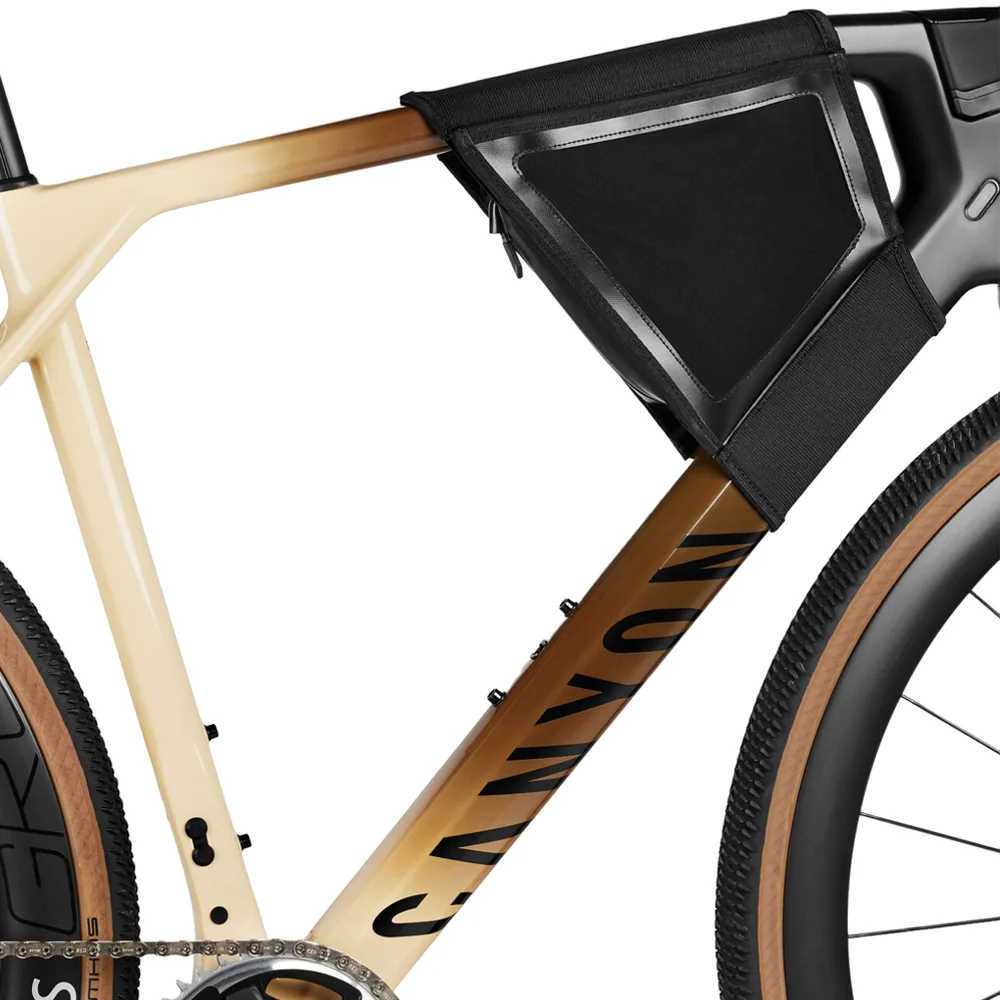

The bike’s all-new artwork contrasts front and rear colours. The front part of the main triangle visually complements the Canyon Grail Frame Bag, available separately and specially developed for the Grail.

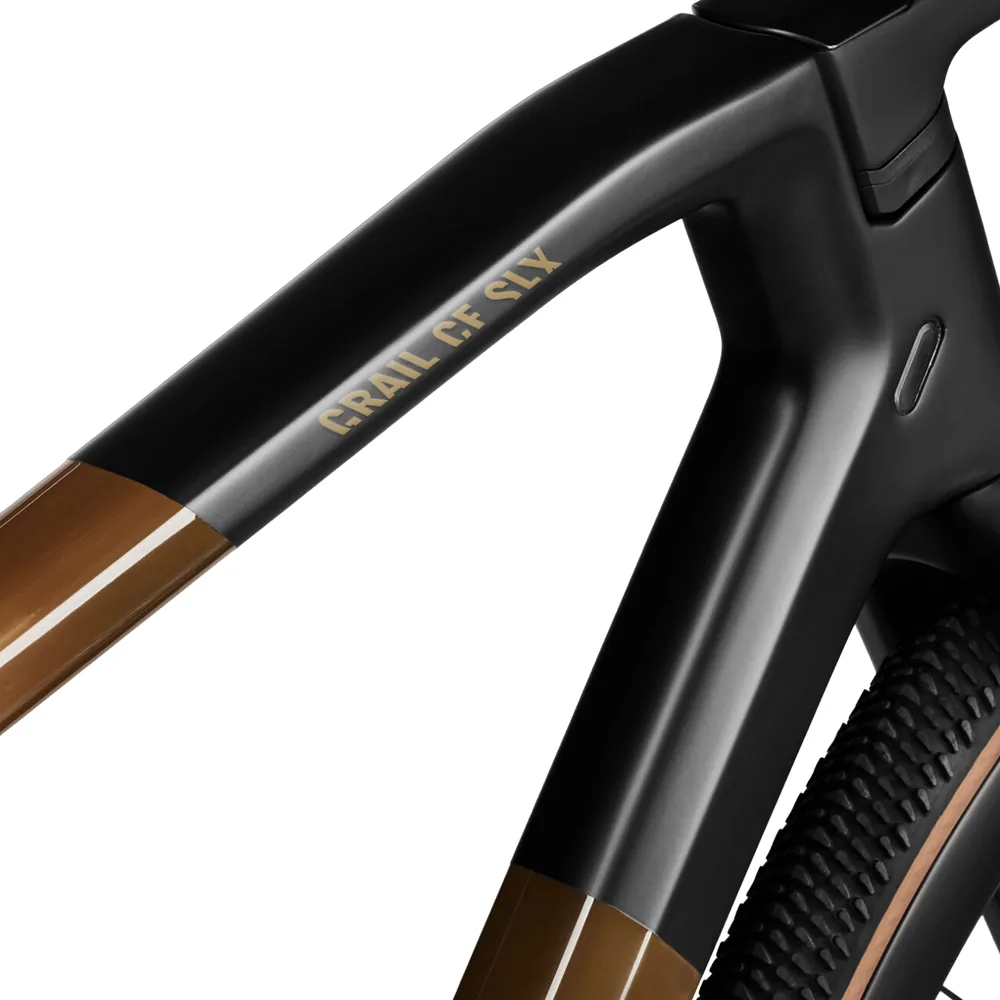

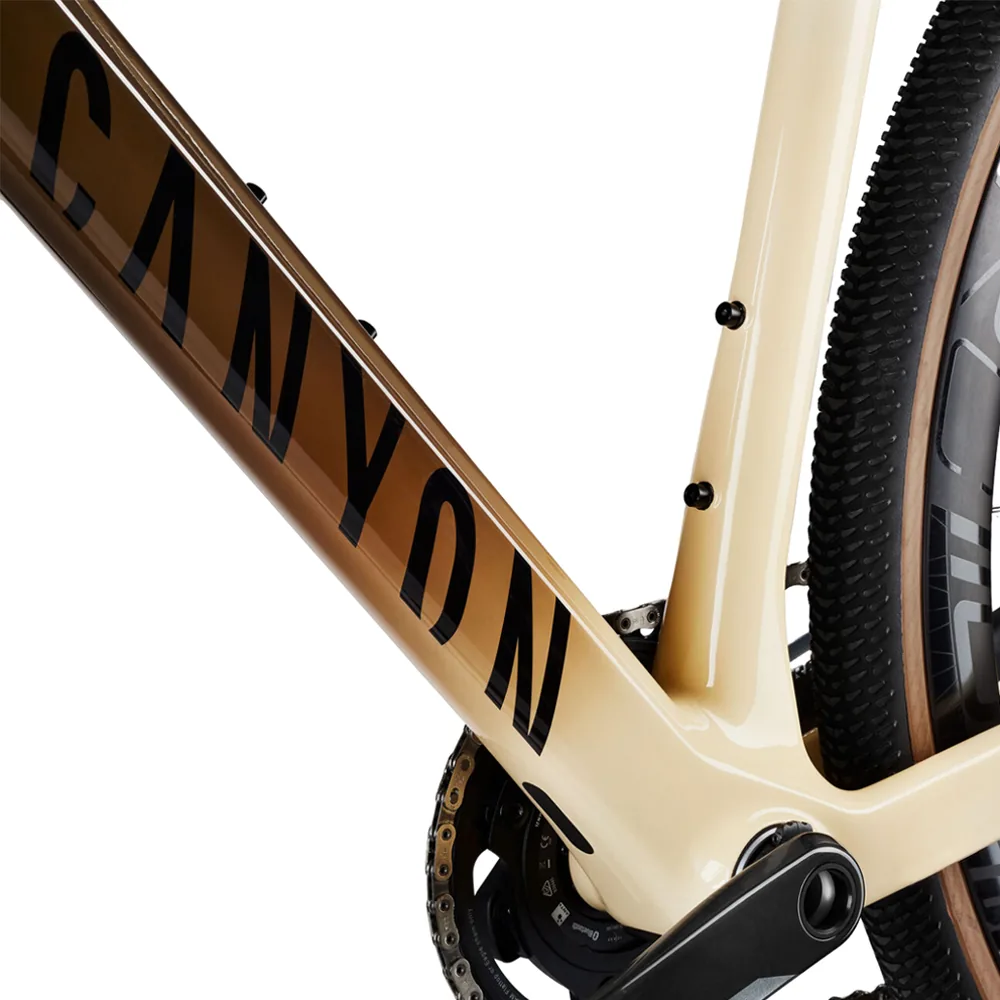

Exclusive frame artwork

Reserved for Grail CF SLX models, the colour gradients on the top and down tubes have an incredible premium look, and give the Grail a truly unique aesthetic that truly stands out from the rest.

SPECIFICATION :

Frame Canyon Grail CF SLX Disc Axle dimension: 12x142 mm Tyre Clearance: 42 mm Material: Carbon (CF)

Fork Canyon FK0070 CF Disc Fork steer tube diameter: 1 1/4" Material: Carbon (CF)

Battery SRAM Powerpack

Rear Derailleur SRAM Red XPLR eTap AXS 12s

Cassette SRAM Force XPLR XG-1271, 12-speed, 10-44 Number of sprockets: 12

Crank SRAM Red DUB Powermeter 40T Number of chainrings: 1

Bottom bracket SRAM Pressfit RED DUB Bottom bracket standard: PF 86,5

Chain SRAM RED D1 12s

Shift-/ Brake Lever SRAM RED eTap AXS HRD 2s

Shift-/ Brake Lever SRAM RED eTap AXS HRD 12s

Brake Rotor SRAM Centerline X Size: 160 mm

Wheel DT Swiss GRC1100 Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 42 mm Wheelsize: 28"

Wheel DT Swiss GRC1100 XDR Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 42 mm Wheelsize: 28"

Tyre Schwalbe G-One R, 40mm Width: 40mm

Thru Axle Canyon Thru Axle Axle dimension: 12x100 mm

Thru Axle Canyon Thru Axle Axle dimension: 12x142 mm

Cockpit Canyon CP07 Gravel Cockpit CF Material: Carbon (CF)

Handlebar Tape Handlebartape 270cm without plug Color: black

Saddle Fizik Argo Terra X3 Gender: Male

Seatpost Canyon S15 VCLS 2.0 CF Material: Carbon Setback: 13 mm / 25 mm Technology: VCLS 2.0 | Fliphead Weight: 220 g

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Small Box

Manuals and Accessories Canyon Note about Cockpit Clamp H31

Manuals and Accessories Canyon Instruction SRAM ETP

Manuals and Accessories Canyon starter box

Manuals and Accessories QSG 006 Cockpit Quick Start Guide
