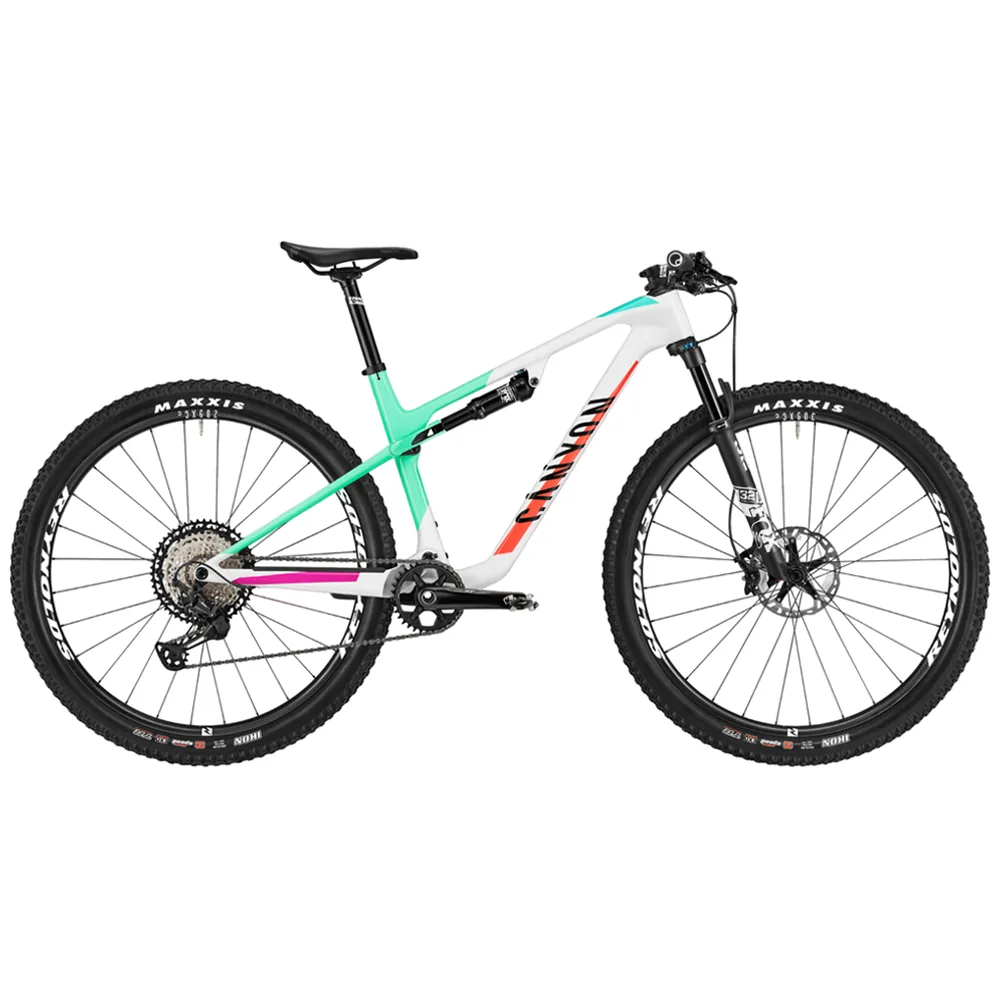

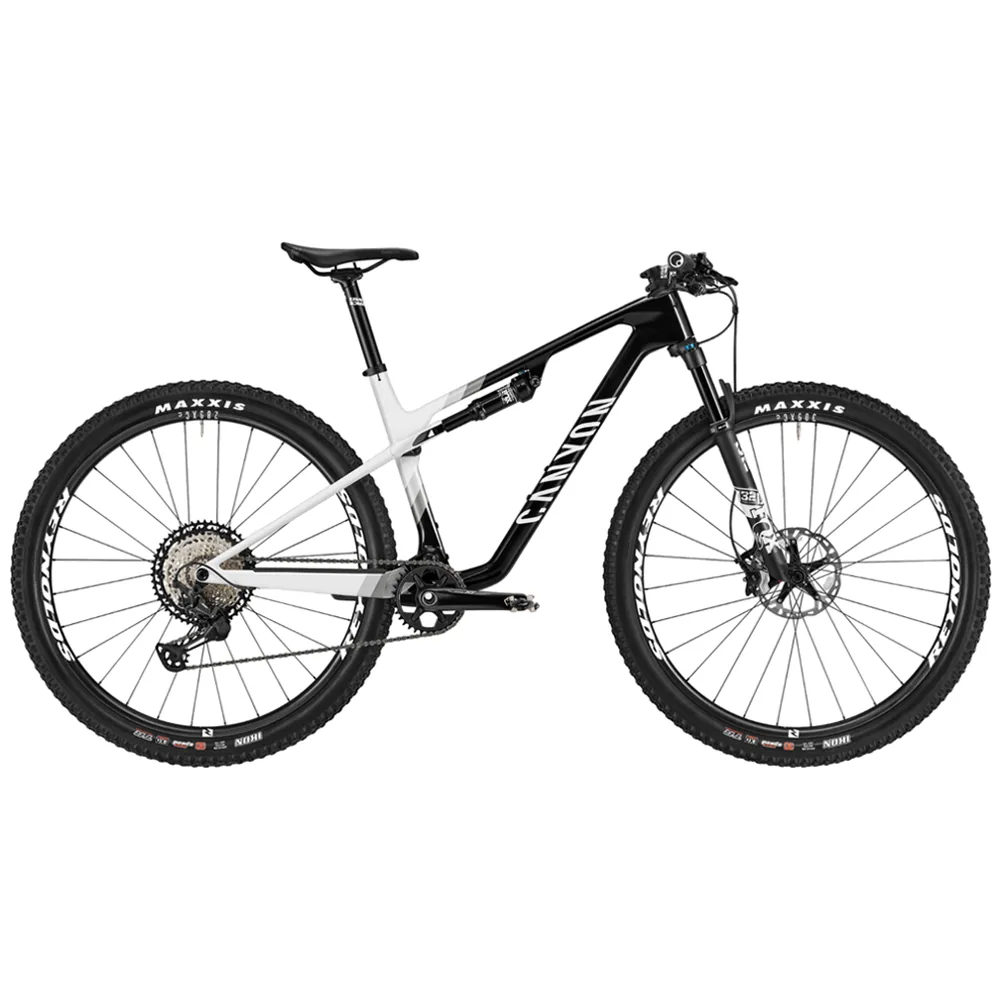

2023 Canyon Lux World Cup 7 Mountain Bike

Product Description

2023 CANYON LUX WORLD CUP 7 MOUNTAIN BIKE

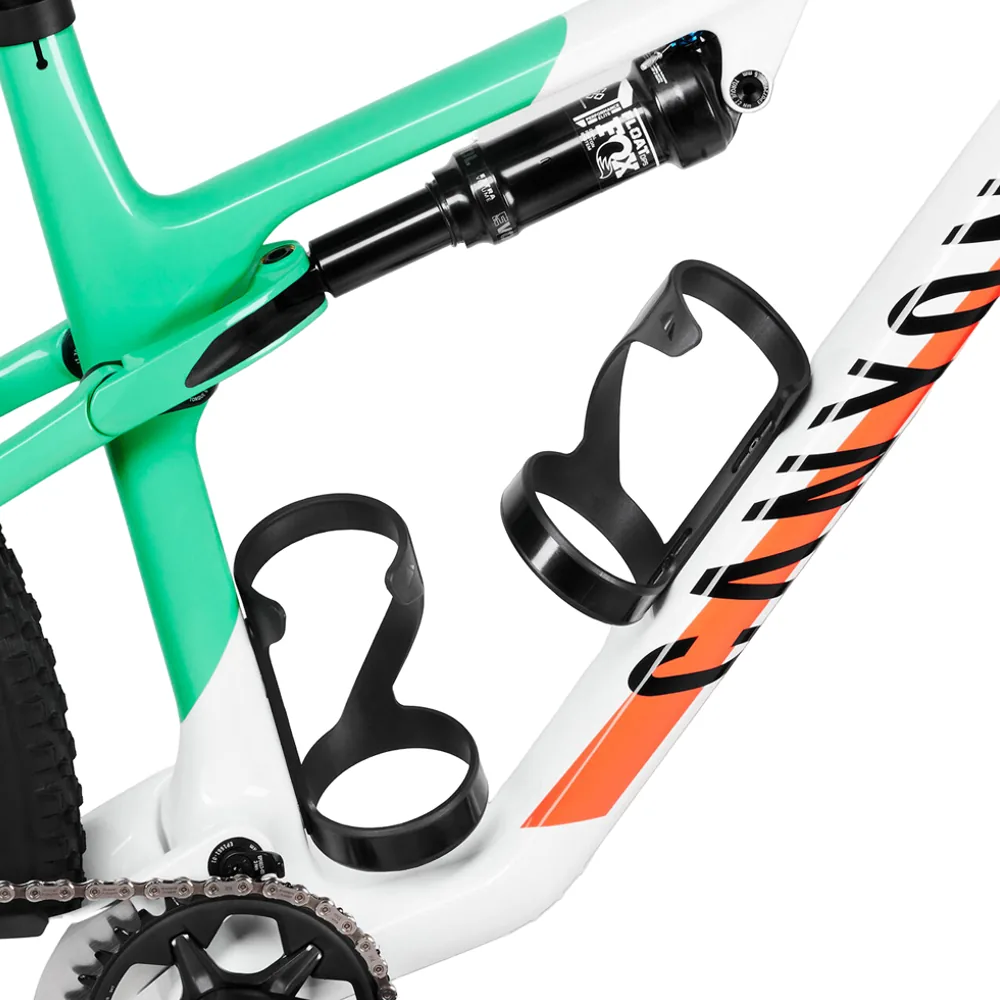

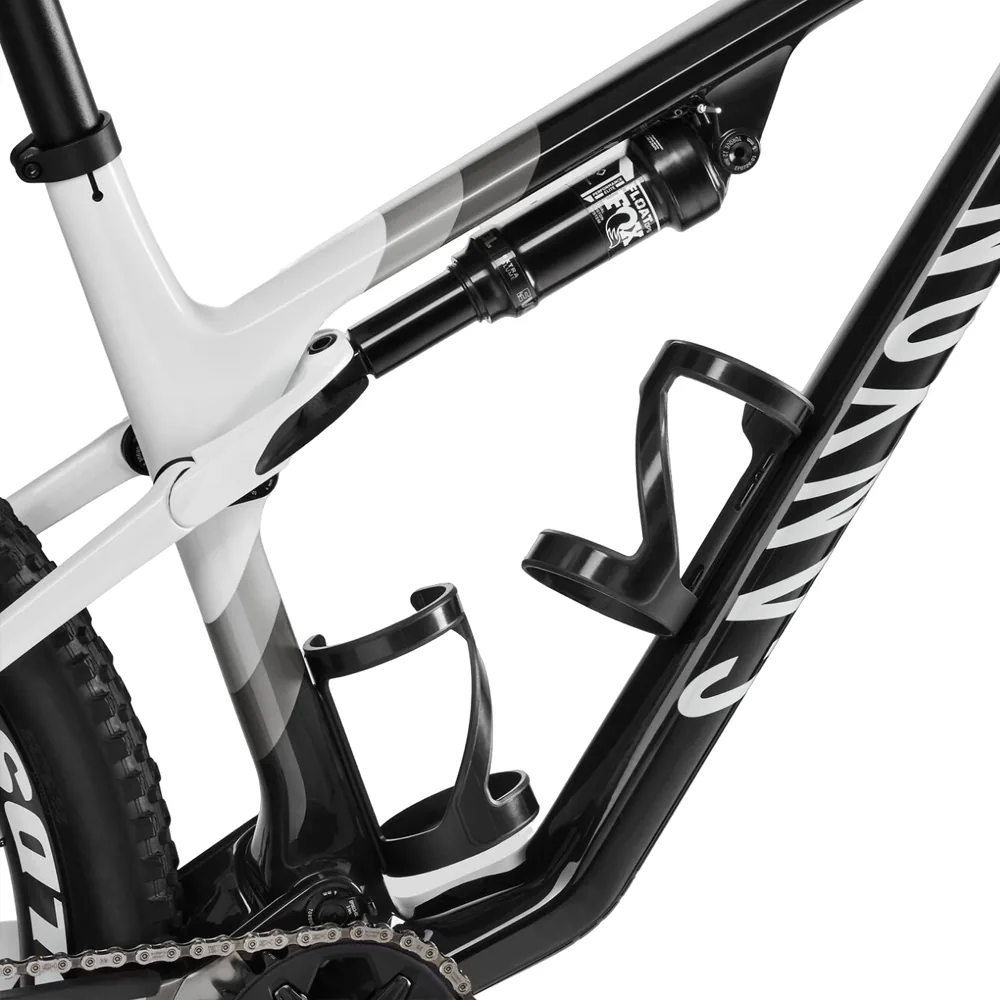

Stay hydrated

All Lux World Cup CF models have space for mounting two large bottles – even on the smallest bikes in size XS. So you can keep pushing the pace lap after lap.

Integrated cable routing

Routing brake and shifting cables and lines from the handlebar through the frame creates a super-clean look and keeps your bike running smoother by protecting everything from the elements. And on the Lux, we’ve taken one step further – by routing them directly through the headset. They leave the frame through the rear triangle, not under the bottom bracket like on a typical design, meaning the bike collects less dirt and stays lighter in muddy conditions. All little details that add up to take seconds off your time.

Impact Protection Unit 2.0

Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.

SPECIFICATION :

Frame Canyon Lux WC CF Axle dimension: 12x148 mm Material: Carbon (CF)

Rear Shock FOX Float DPS Performance Elite Remote

Suspension Fork FOX 32 Step-Cast Performance Elite Remote Axle dimension: 15x110 mm Stanchion Diameter: 32 mm Travel: 100 mm Fork steer tube diameter: 1 1/8" - 1,5"

Rear Derailleur Shimano DEORE XT M8100 Cage length: long

Shift Lever Shimano DEORE XT M8100

Cassette Shimano DEORE XT M8100 Number of sprockets: 12

Crank Shimano DEORE XT M8120 Number of chainrings: 1

Bottom bracket Shimano Pressfit BB71 Bottom bracket standard: PF 89,5/92

Chain Shimano CN-M8100 12s

Disc Brake Shimano Deore XT M8100

Disc Brake Shimano XT M8110

Brake Rotor Shimano DEORE XT MT800 Size: 180 mm

Brake Rotor Shimano DEORE XT MT800 Size: 160 mm

Wheel Reynolds TR309c XC Axle dimension: 15x110 mm Rotor mount: Center Lock Inner width: 30 mm Wheelsize: 29" Rim material: Aluminium

Wheel Reynolds TR289c XC, S12 Axle dimension: 12x148 mm Rotor mount: Center Lock Wheelsize: 29" Rim material: Aluminium

Tyre MAXXIS Ikon Exo 2.35" Width: 2.35"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Stem Race Face Ride Fork steer tube diameter: 1 1/8" - 1 1/4"

Handlebar Race Face Ride Rise Clamping diameter: 31,8 mm Width: 740 mm

Grips Ergon GA20

Saddle Ergon SR10 Pro Sport

Seatpost Race Face Ride Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Small Box

Manuals and Accessories Canyon Small Box

Manuals and Accessories Quick Start Guide
