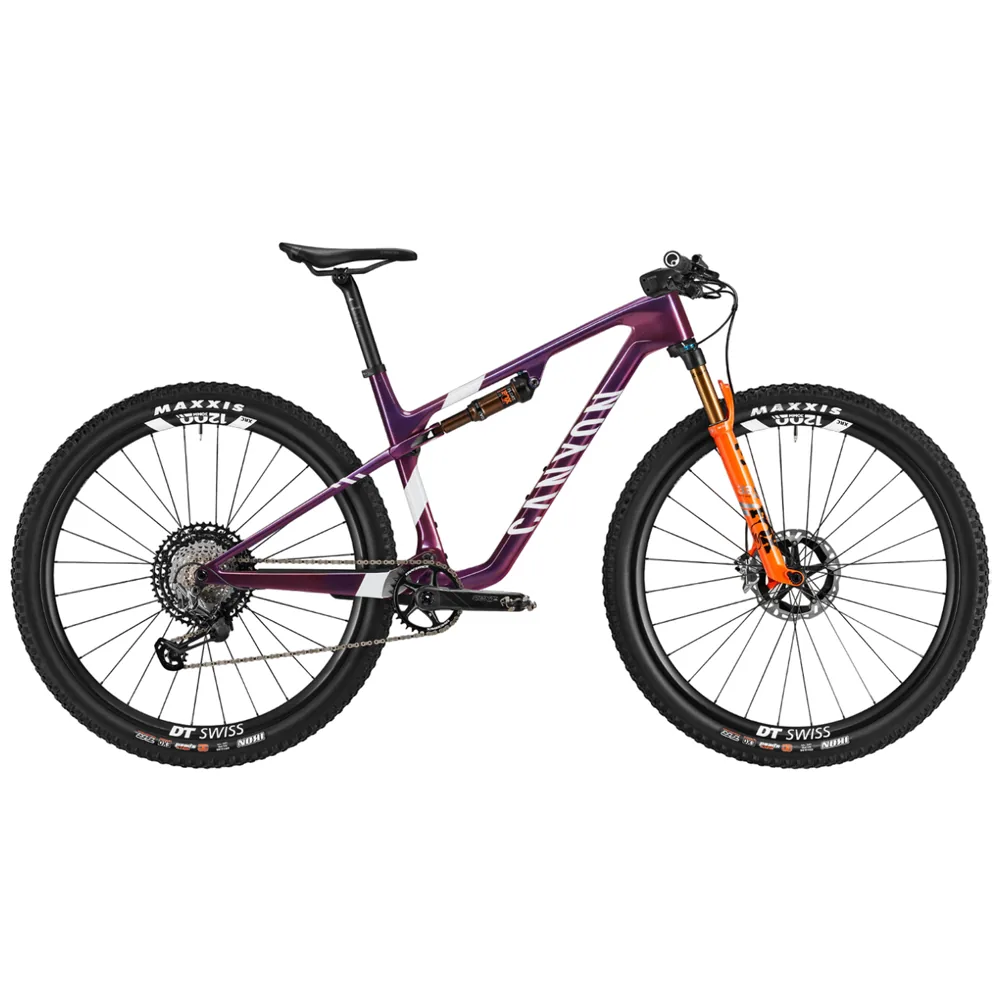

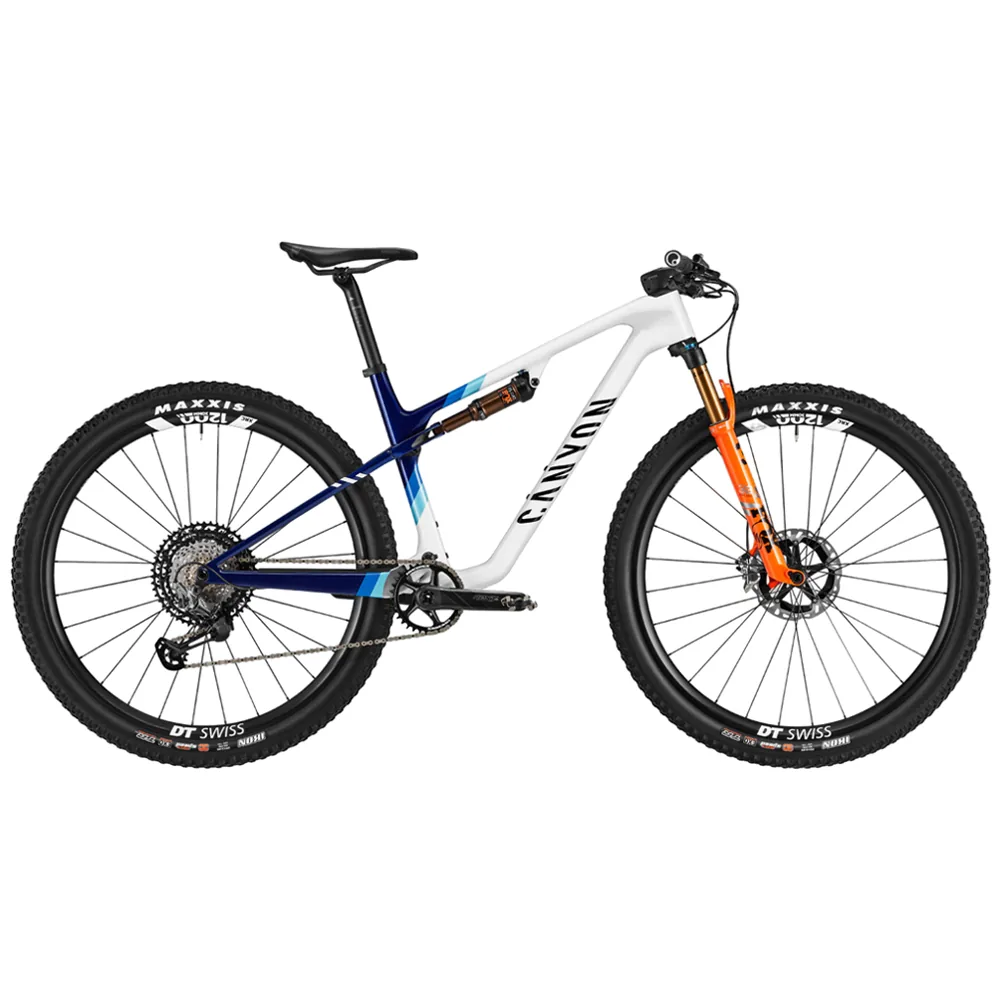

2023 Canyon Lux World Cup CFR Team Mountain Bike

Product Description

2023 CANYON LUX WORLD CUP CFR TEAM MOUNTAIN BIKE

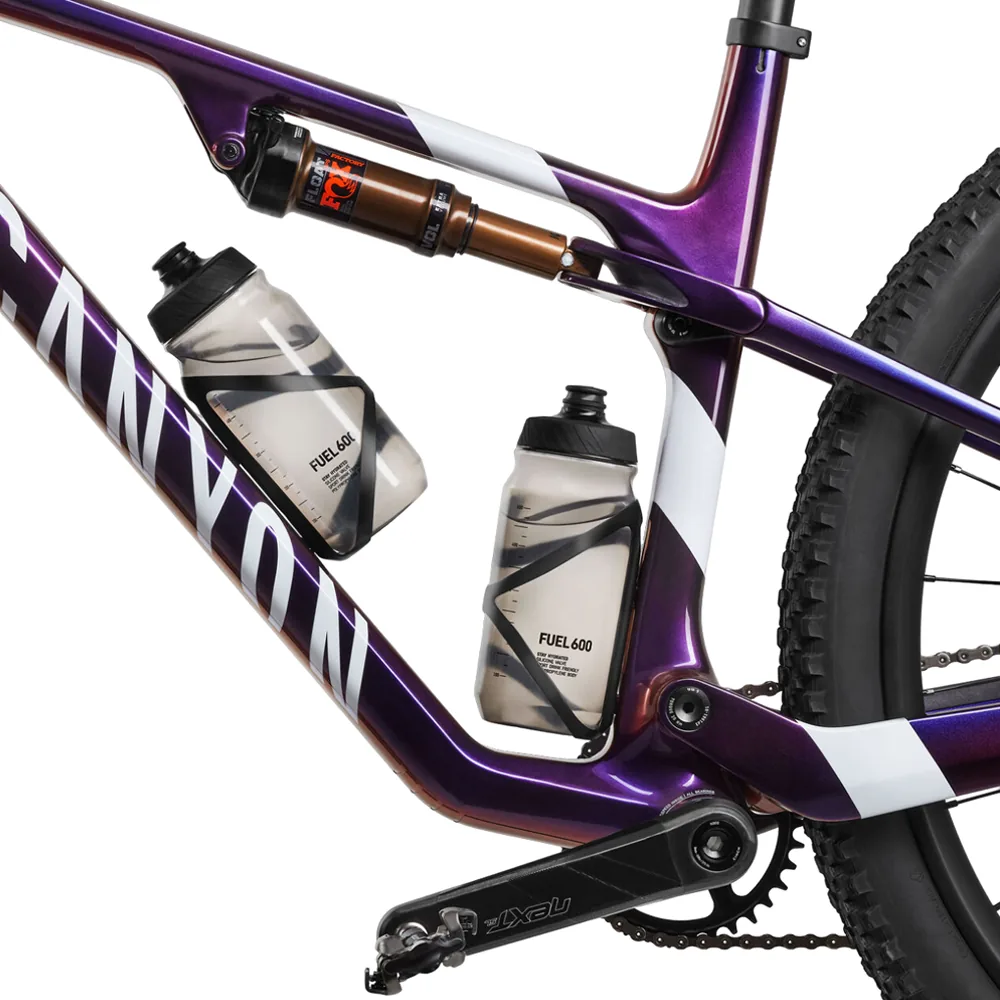

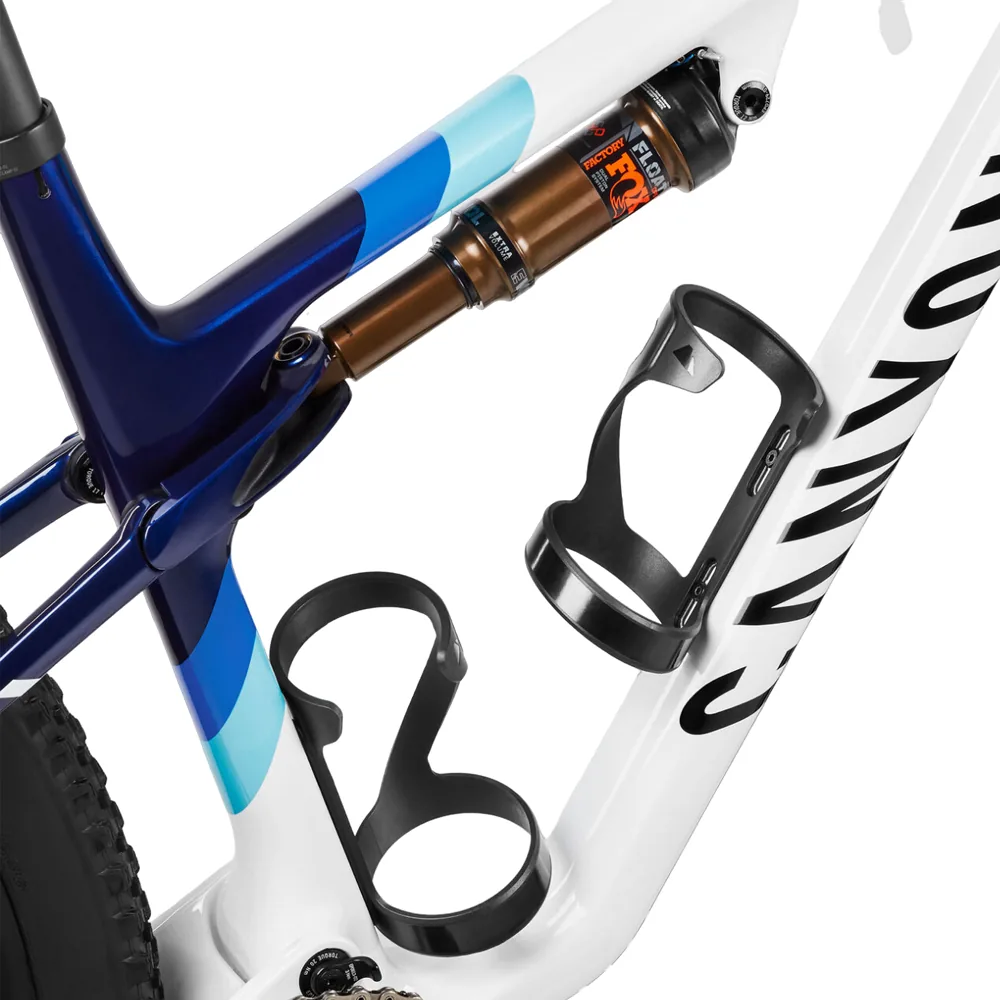

Stay hydrated

All Lux World Cup CFR models have space for mounting two large bottles – even on the smallest bikes in size XS. So you can keep pushing the pace lap after lap.

High-end ceramic bearings

The most ambitious athletes need the best parts to give them the best performance. That’s why Lux World Cup CFR bikes are fitted with premium, super long-life CeramicSpeed bearings all over – we use them on the frame, headset, and bottom bracket. They aren’t just lighter, they’re also super-smooth and are especially resistant to corrosion and rust.

Impact Protection Unit 2.0

Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.

SPECIFICATION :

Frame Canyon Lux WC CFR Axle dimension: 12x148 mm Material: Carbon (CFR)

Rear Shock FOX Float DPS Factory Remote

Suspension Fork FOX 32 Step-Cast Factory Remote Axle dimension: 15x110 mm Stanchion Diameter: 32 mm Travel: 100 mm Fork steer tube diameter: 1 1/8" - 1,5"

Rear Derailleur Shimano XTR, 12-speed Cage length: long

Shift Lever Shimano XTR, 12-speed

Cassette Shimano XTR CS-M9101 12s 10-51 Number of sprockets: 12

Crank Race Face Next SL Number of chainrings: 1

Bottom bracket Ceramic Speed BB92 30 mm

Chain Shimano CN-M9100 12s

Disc Brake Shimano XTR M9100

Disc Brake Shimano XTR M9110

Brake Rotor Shimano RT-MT900, 180mm Size: 180 mm

Brake Rotor Shimano RT-MT900 Size: 160 mm

Wheel DT Swiss XRC 1200 Spline Axle dimension: 12x148 mm Rotor mount: Center Lock Inner width: 30 mm Wheelsize: 29"

Wheel DT Swiss XRC 1200 Spline Axle dimension: 15x110 mm Rotor mount: Center Lock Inner width: 30 mm Wheelsize: 29"

Tyre MAXXIS Ikon Exo 2.35" Width: 2.35"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Cockpit Canyon CP0008 XC-Cockpit Material: Carbon (CF)

Grips Ergon GA20

Saddle Ergon SR10 Pro Carbon

Seatpost Canyon SP0061 Carbon Seatpost Clamp diameter: 30,9 mm Material: Carbon (CF)

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Small Box

Manuals and Accessories Canyon Small Box

Manuals and Accessories Quick Start Guide
