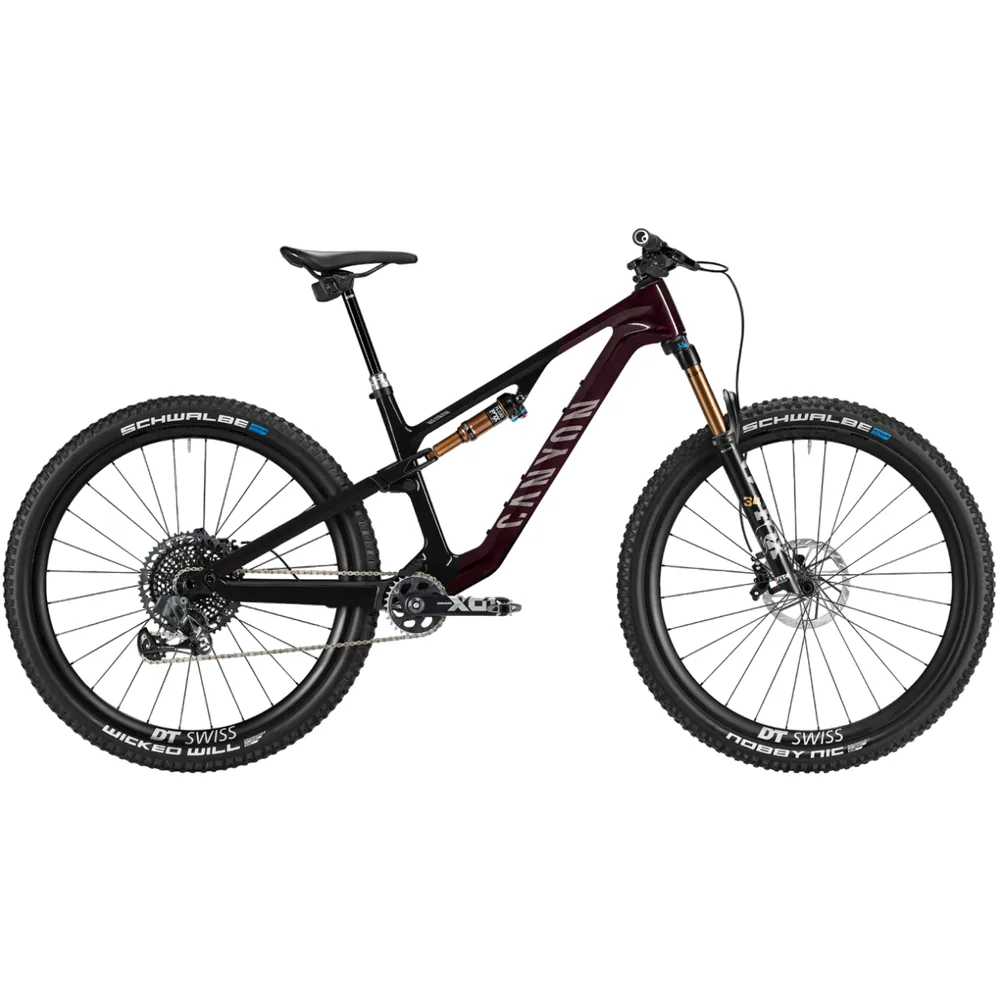

2023 Canyon Neuron CF LTD Mountain Bike

Product Description

2023 CANYON NEURON CF LTD MOUNTAIN BIKE

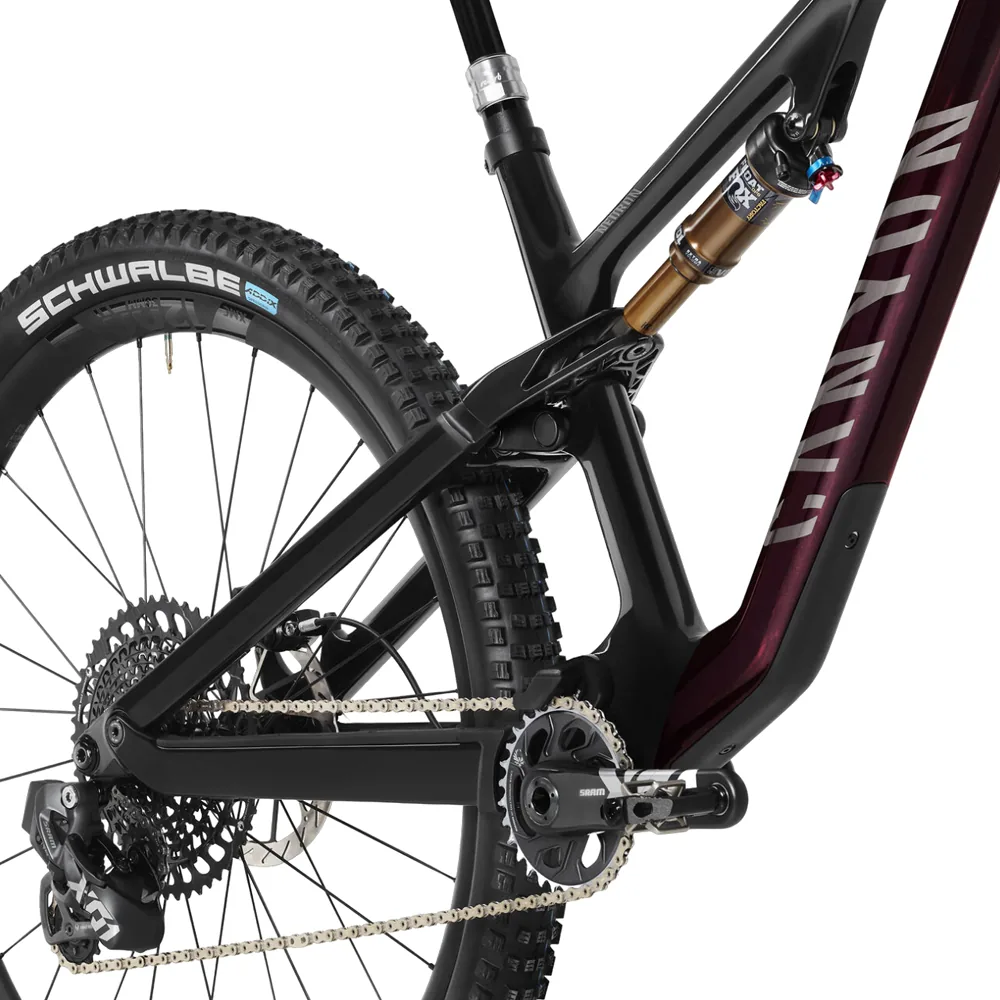

Triple Phase Suspension

Triple Phase Suspension delivers incredible control and feel on the trail. Small-bump sensitivity for huge traction. Mid-stroke stability for speed and momentum. And on big hits the suspension ramps up progressively to avoid bottoming out.

Clean and simple internal cable routing

The Neuron CF has internal cable routing for a more elegant look. But it’s not just about style: pre-installed internal liners make cable installation simpler too. Push the cable through and hey presto, it comes out the other end. The design minimises internal bending and to protect the inside of the frame from mud all entry points are sealed.

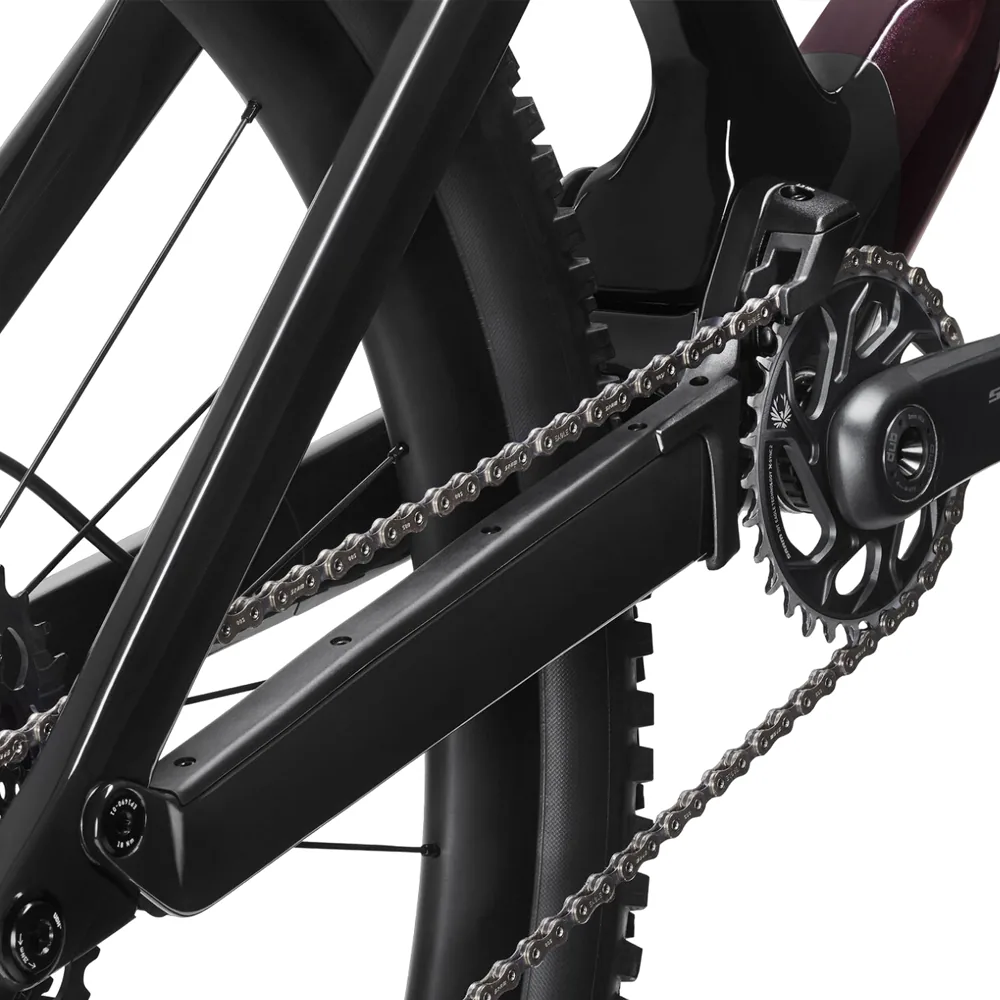

Integrated chainstay protection and chain guide

Your chain will stay secure on the roughest trails thanks to the Neuron CF’s cleanly integrated chain guide. Plus a chainstay protector keeps the frame in pristine condition and also eliminates annoying chain slap noises thanks to its special noise-dampening rubber compound. The guide and protectors are both adjustable to work with chainring sizes 28-34T.

A quick-release through axle

Get the best of all worlds with the Quixle through-axle. Precise handling, thanks to the stiffness of a through-axle. And rapid wheel removal, with the speed and ease you normally only get from a quick release. The handle tucks away neatly for tool-free removal.

SPECIFICATION :

Frame Canyon Neuron Axle dimension: 12x148 mm Material: Carbon (CF)

Rear Shock FOX Float DPS Factory

Suspension Fork FOX 34 Float Factory FIT4 Axle dimension: 15x110 mm Stanchion Diameter: 34 mm Travel: 140 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm

Battery SRAM Powerpack

Rear Derailleur SRAM X01 Eagle AXS

Chainguard Canyon EP1538-01 Chain Guide

Shift Lever SRAM Eagle AXS

Cassette SRAM XG-1295 Number of sprockets: 12

Crank SRAM X01 EAGLE Number of chainrings: 1

Bottom bracket SRAM BSA DUB Bottom bracket standard: BSA 73

Chain SRAM X01 Eagle 12s

Disc Brake SRAM Matchmaker Clamp

Disc Brake SRAM Code RSC

Disc Brake SRAM Code RSC

Brake Rotor SRAM HS2 Size: 180 mm

Wheel DT Swiss XMC1200 29" Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Inner width: 30 mm Wheelsize: 29"

Wheel DT Swiss XMC 1200 XD Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Inner width: 30 mm Wheelsize: 29"

Tyre Schwalbe Nobby Nic 29x2.4 black skin Width: 2.4"

Tyre Schwalbe Wicked Will 29"x2.4" Width: 2.4"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Stem Race Face Turbine R Fork steer tube diameter: 1 1/8"

Handlebar Race Face Next 35 Clamping diameter: 35,0 mm Width: 760 mm Rise: 20 mm

Grips Ergon GA20

Saddle Ergon SM10 Sport Men Gender: Male

Seatpost RockShox Reverb AXS Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Small Box

Manuals and Accessories Canyon Instruction SRAM ETP

Manuals and Accessories Canyon Smallbox
