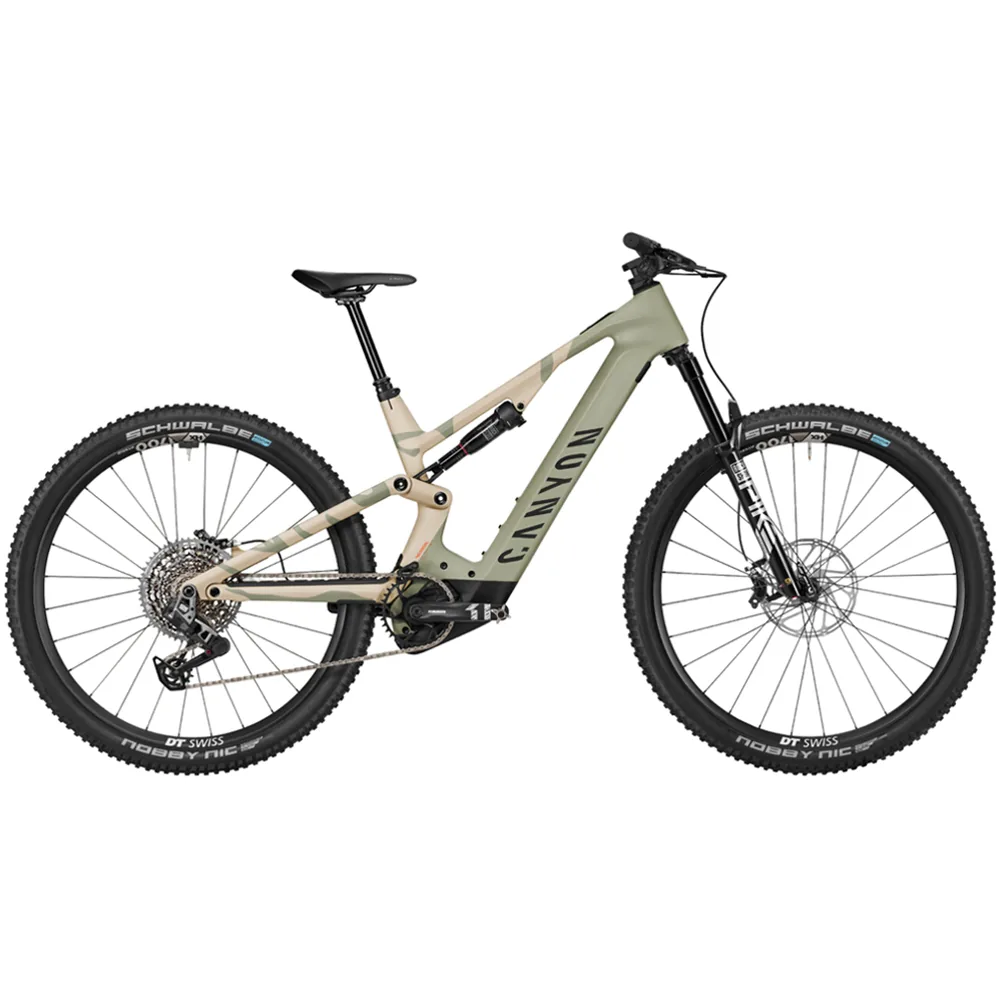

2023 Canyon Neuron:ON CF 9 Mountain Bike

Product Description

2023 CANYON NEURON:ON CF 9 MOUNTAIN BIKE

Trail geometry on an elegant, light carbon frame

Turn up the style dial with the new Neuron:ON’s elegant carbon design and more confidence-inspiring trail geometry. It’s a huge 2.5 kg lighter than its predecessor and is more progressive than ever with a slacker 66.5° head tube angle, 2° steeper seat tube angle, and longer reach.

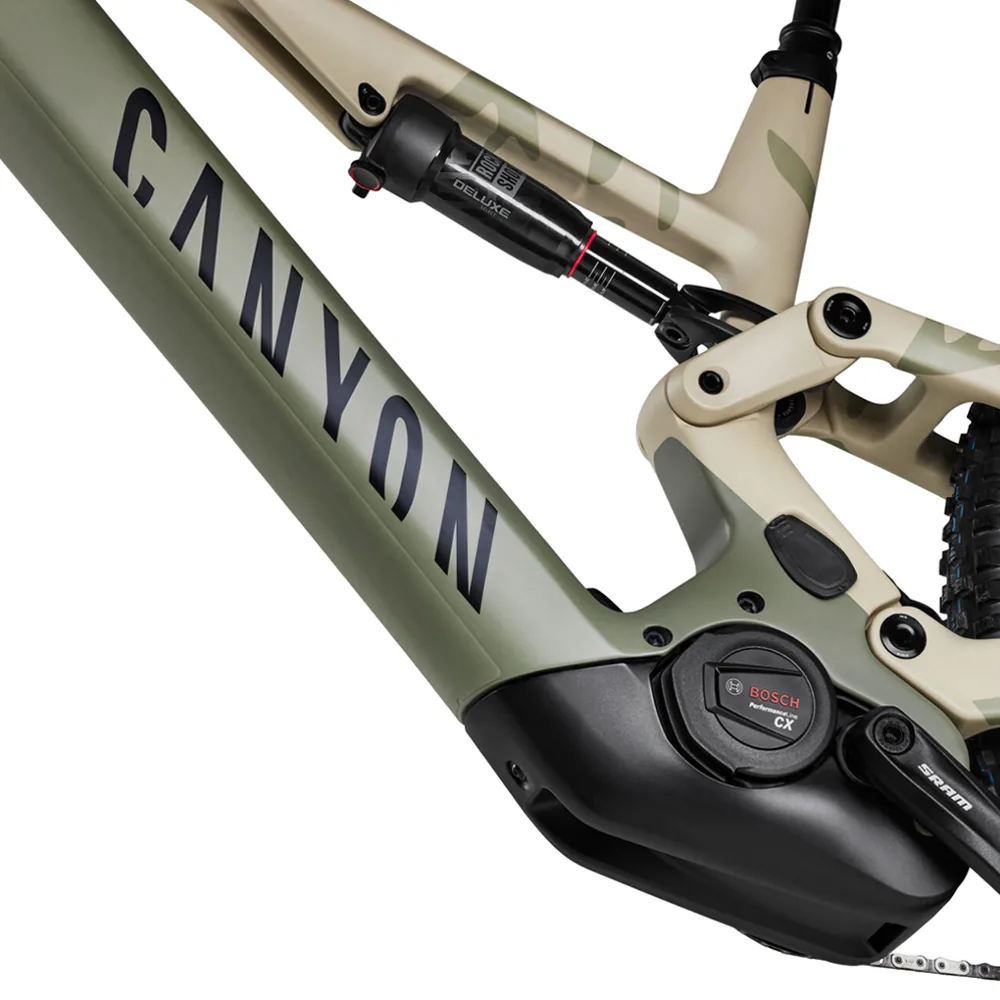

A powerful Bosch motor: surge up the climbs

Power up the steepest climbs without breaking a sweat. With a huge 340% pedal assistance, the Bosch Performance Line CX motor more than triples your pedalling power: trust us, you'll feel unstoppable. Plus, with a punchy 85 Nm of torque, this is one of the most powerful and straight up fun e-bike drive systems on the market today.

Advanced theft protection

Unlock a range of awesome features by connecting your bike and smartphone using Bosch’s eBike Flow app. Park up with confidence: track your bike’s location anywhere in the world and shut down the motor if it goes missing. And explore without getting lost, with navigation and route planning too.

A stronger battery for bigger adventures

With an incredible 750 Wh of charge, this battery takes you further than ever before. The Bosch Powertube 750 Wh has enough juice for all-day hard charging. And for super-clean optics, it’s discreetly integrated into the frame too. Charging the battery is simple: just plug the supplied charger right into the frame-integrated charging jack.

SPECIFICATION :

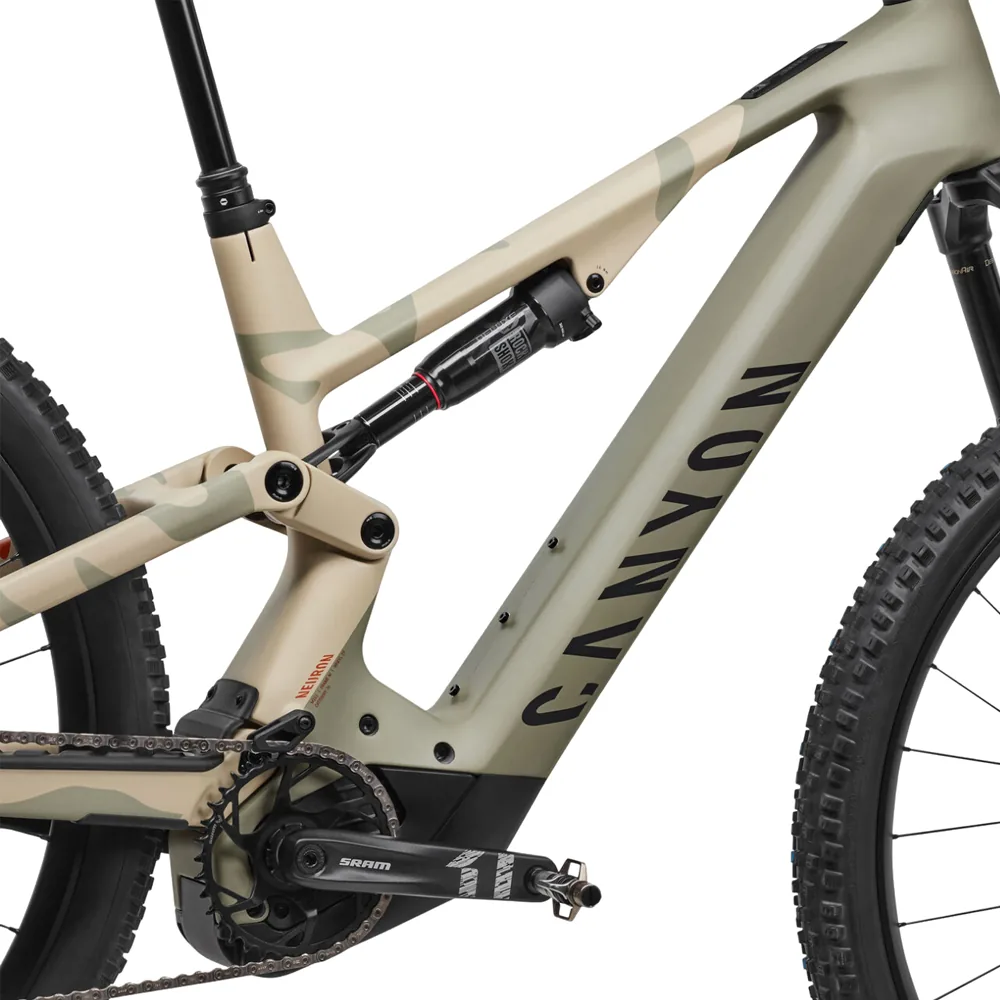

Frame Canyon Neuron:ON Sleek carbon e-MTB frame with a fixed, integrated battery combines an all-day riding position with trail-capable geometry. The Triple Phase Suspension delivers next level compliance and grip. Axle dimension: 12x148 mm Material: Carbon (CF)

Rear Shock RockShox Deluxe Select R

Suspension Fork Rockshox Pike Ultimate Travel: 140 mm Fork steer tube diameter: 1 1/8" - 1,5"

Battery SRAM Powerpack

Battery Bosch PowerTube 750Wh

Motor Bosch Performance Line CX

Rear Derailleur SRAM GX Eagle AXS Transmission

Chainguard Canyon Chainguide M091/M129

Shift Lever SRAM AXS Pod Ultimate

Cassette SRAM GX Eagle Transmission Cassette 12s 10-52 Number of sprockets: 12

Crank SRAM X1

Chainring SRAM Eagle Transmission E-MTB chainring for Bosch

Chain SRAM GX Eagle Transmission

Disc Brake SRAM Code RSC

Disc Brake SRAM Code RSC

Disc Brake SRAM Code RSC

Brake Rotor SRAM Centerline Size: 203 mm

Wheel DT SWISS HX1700 Rotor mount: IS 6-bolt Wheelsize: 29"

Wheel DT Swiss HX1700 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Rim height: 21 mm Hub Technology: Spline Inner width: 30 mm Wheelsize: 29" Rim material: Aluminium

Tyre Schwalbe Nobby Nic 29x2.4 black skin Width: 2.4"

Tyre Schwalbe Wicked Will 29"x2.4" Width: 2.4"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Stem Canyon:ON ST0031 Canyon E-MTB stem. Length: 45 mm Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm

Handlebar Canyon:ON HB0056 Riser bar Aluminum, 780mm width, 35mm clamp diameter, 20mm rise

Grips Canyon Lock-On Grips

Saddle Fizik Terra Alpaca X5

Seatpost Iridium Dropper Post Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling. Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Battery Charger Bosch 4A

Trekking & City Pedals Iridium VP-536

Manuals and Accessories Canyon Small Box

Manuals and Accessories Wrench Tool 15mm

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Quick start guide
