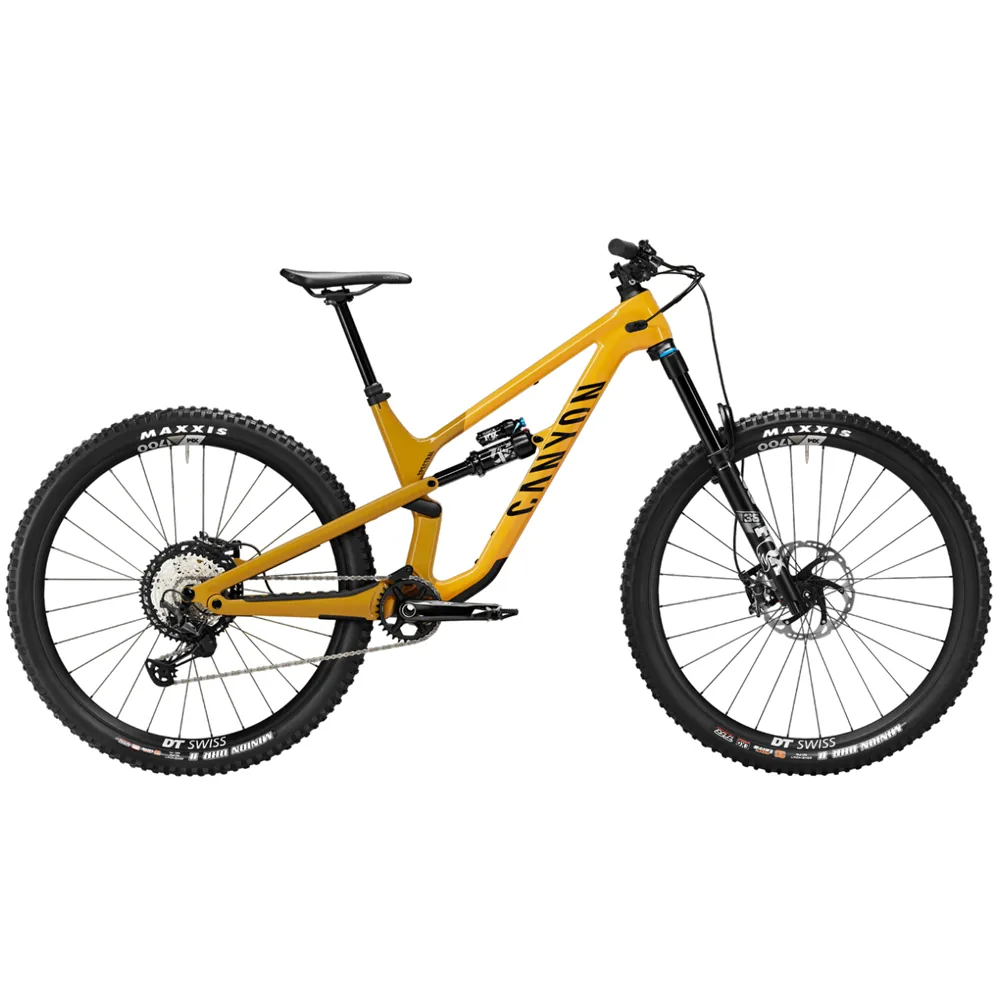

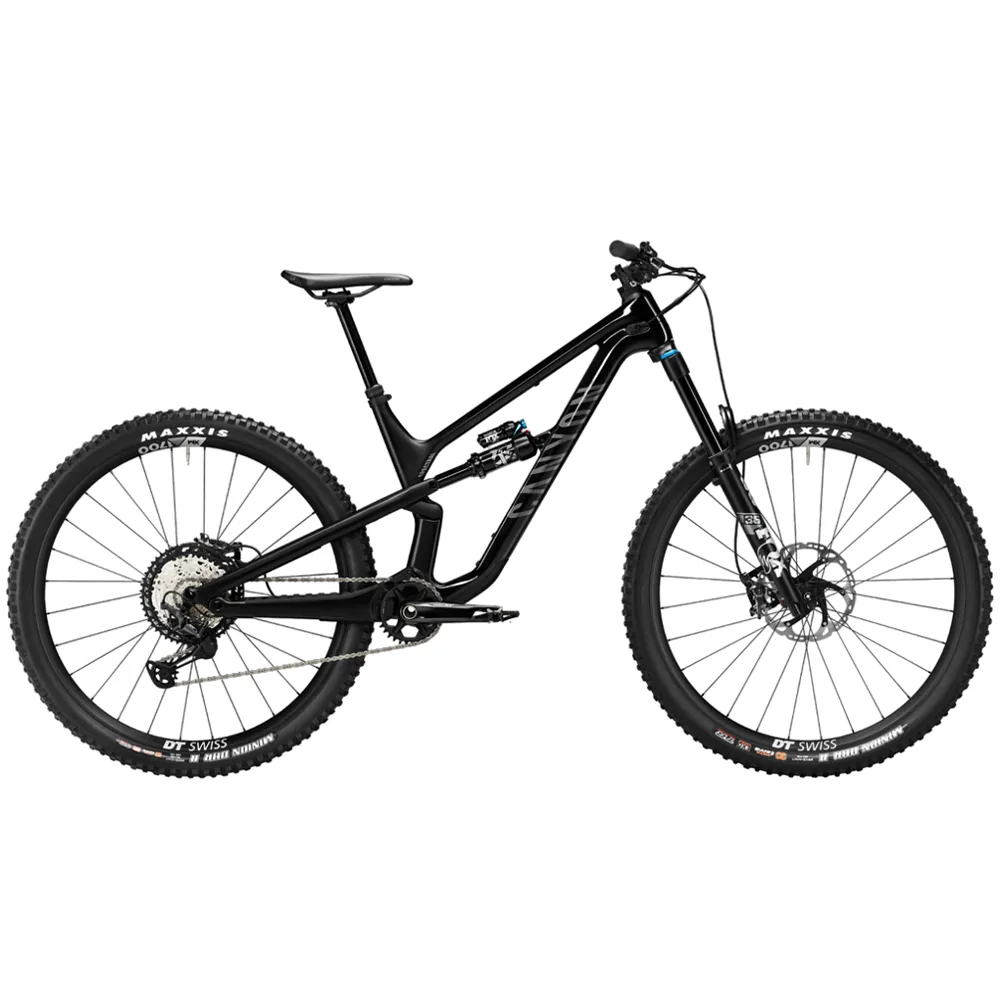

2023 Canyon Spectral 29 CF 8 Mountain Bike

Product Description

2023 CANYON SPECTRAL 29 CF 8 MOUNTAIN BIKE

Flip Chip

Maximum stability and control in corners or more ground clearance for technical climbing? What if you could have both? Using the Flip Chip on the rear suspension linkage, you can change the bike’s geometry to suit your riding style within a matter of seconds. Head tube and seat tube angle adjustment: 0.5 degrees. Bottom bracket height adjustment: 8 mm.

Silent Protection

Straight from pro racing, right on to your bike – we designed the Spectral’s chainstay guards using feedback from our EWS mechanics. Their special structure dampens chain slap noise for a quiet, slick ride feel.

Clever Guided Cable Routing

We’ve integrated a plastic cable channel inside the frame to eliminate annoying cable rattle and to make tune-ups and cable swaps fast and painless. Just thread brake and shifter cables into the chainstay, push them through, and they automatically come out the front of the front triangle.

Trail-Proven Durability

With its Category 4 rating, this bike is designed to withstand hard riding on harsh, obstacle-scattered terrain with steep gradients, jumps and high speeds. We also made sure that your bike continues to deliver time-and-time again and is easy to maintain by getting the details like double-sealed bearings and replaceable threaded inserts right.

SPECIFICATION :

Frame Canyon Spectral CF 29 Full-carbon frame with optimised stiffness-to-weight ratio. With Flip Chip system for simple geometry adjustment. Category 4. Axle dimension: 12x148 mm Material: Carbon (CF)

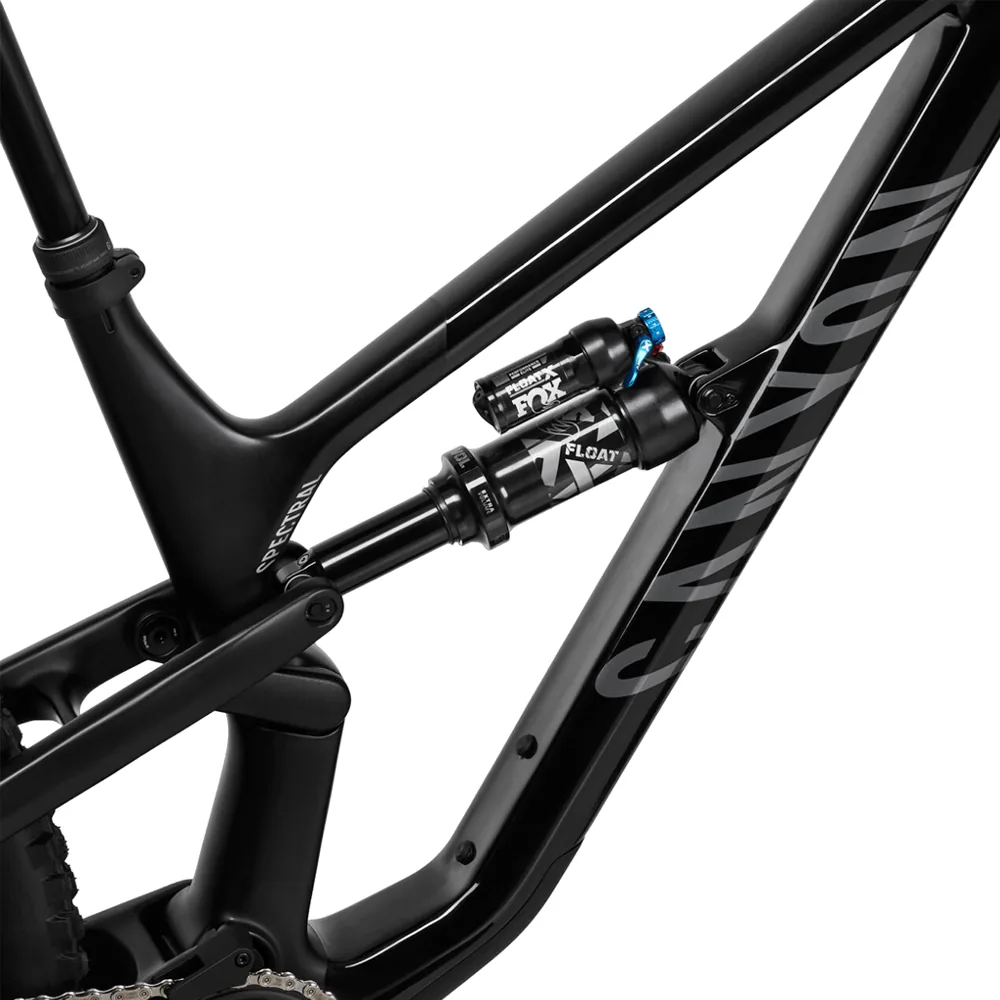

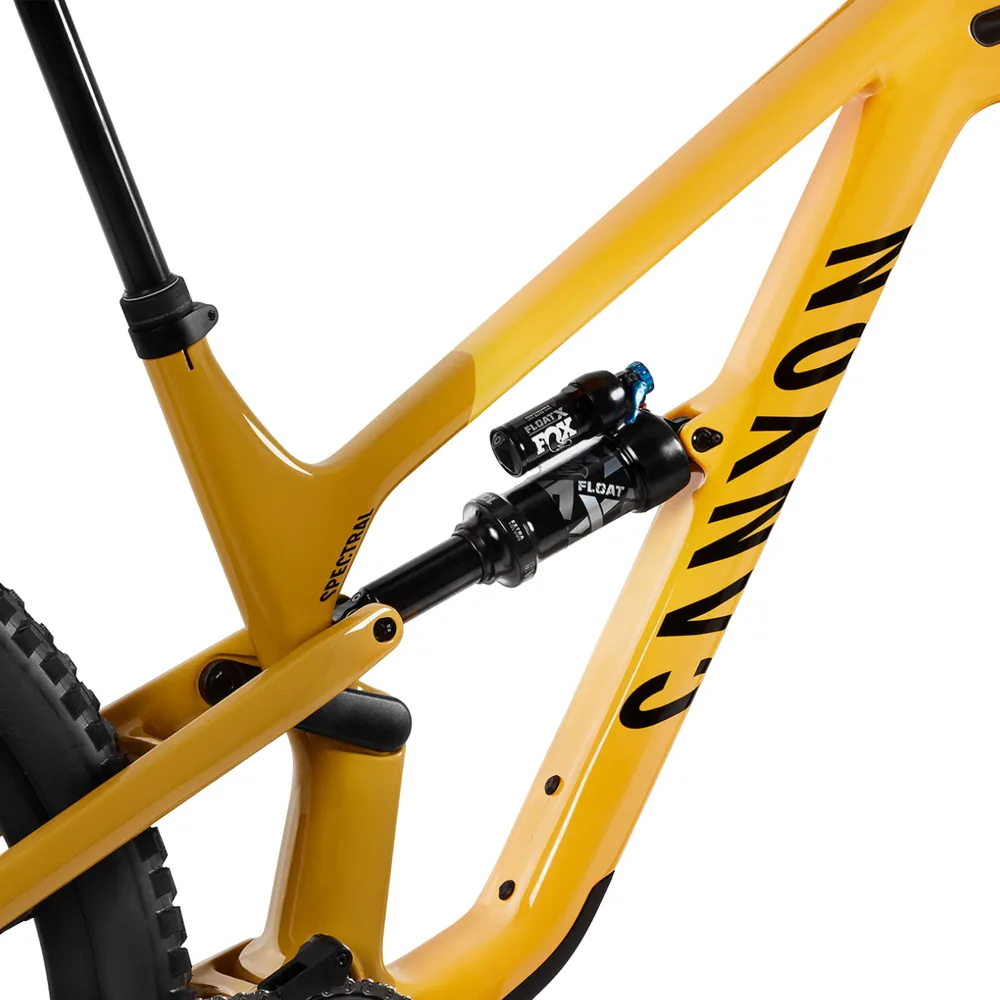

Rear Shock FOX Float X Performance Elite

Suspension Fork FOX 36 Performance Elite Grip2 Axle dimension: 15x110 mm Stanchion Diameter: 36 mm Travel: 160 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm

Rear Derailleur Shimano DEORE XT M8100 Cage length: long

Chainguard Canyon EP1266-01 ISCG05 Plate

Chainguard Canyon GP0293-02

Shift Lever Shimano DEORE XT M8100

Cassette Shimano DEORE XT M8100 Number of sprockets: 12

Crank Shimano DEORE XT M8120 Number of chainrings: 1

Bottom bracket Shimano MT800 Bottom bracket standard: BSA 68/73

Chain Shimano M6100 SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly

Disc Brake Shimano DEORE XT M8120

Disc Brake Shimano DEORE XT M8120

Brake Rotor Shimano DEORE XT M8120

Wheel DT Swiss XM1700 29" Rotor mount: IS 6-bolt Wheelsize: 29" Wheelsize: 29"

Wheel DT Swiss XM1700 29" Rotor mount: IS 6-bolt Wheelsize: 29"

Tyre Maxxis Minion DHR II Wheelsize: 29"

Tyre Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x29 Width: 2,4"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Stem Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm

Handlebar Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm

Grips Canyon G5

Saddle Ergon SM10 Enduro Comp

Seatpost Canyon G5 Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Canyon Small Box

Manuals and Accessories Canyon Quick Start Guide
