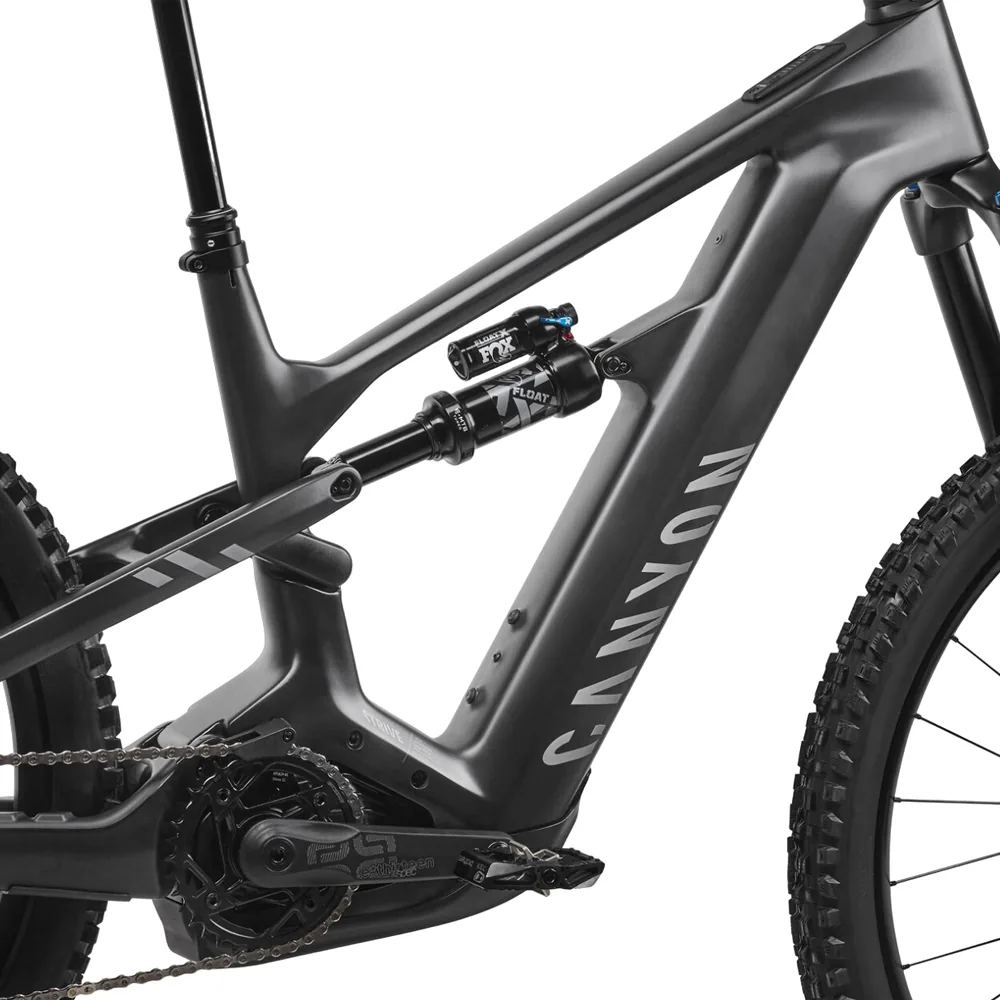

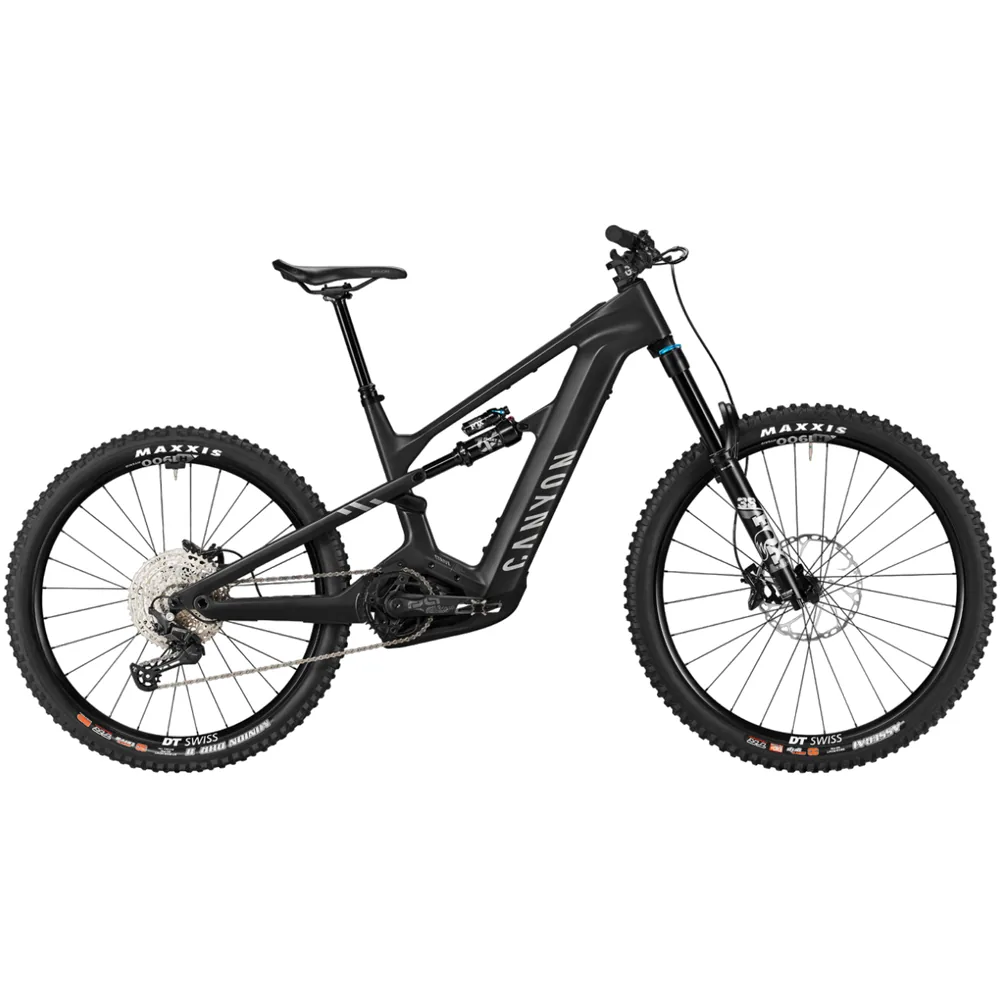

2023 Canyon Strive:ON CFR Underdog Mountain Bike

Product Description

2023 CANYON STRIVE:ON CFR UNDERDOG MOUNTAIN BIKE

Unmatched CFR frame for e-bike enduro racing

Canyon Factory Racing is our commitment to pushing the limit. While our racers ride all out to shave seconds on the trail, our designers and engineers take feedback and innovate to offer every possible advantage. The result: each CFR frame is built with the highest quality carbon fibres and sets the bar for weight, durability, and cutting-edge performance.

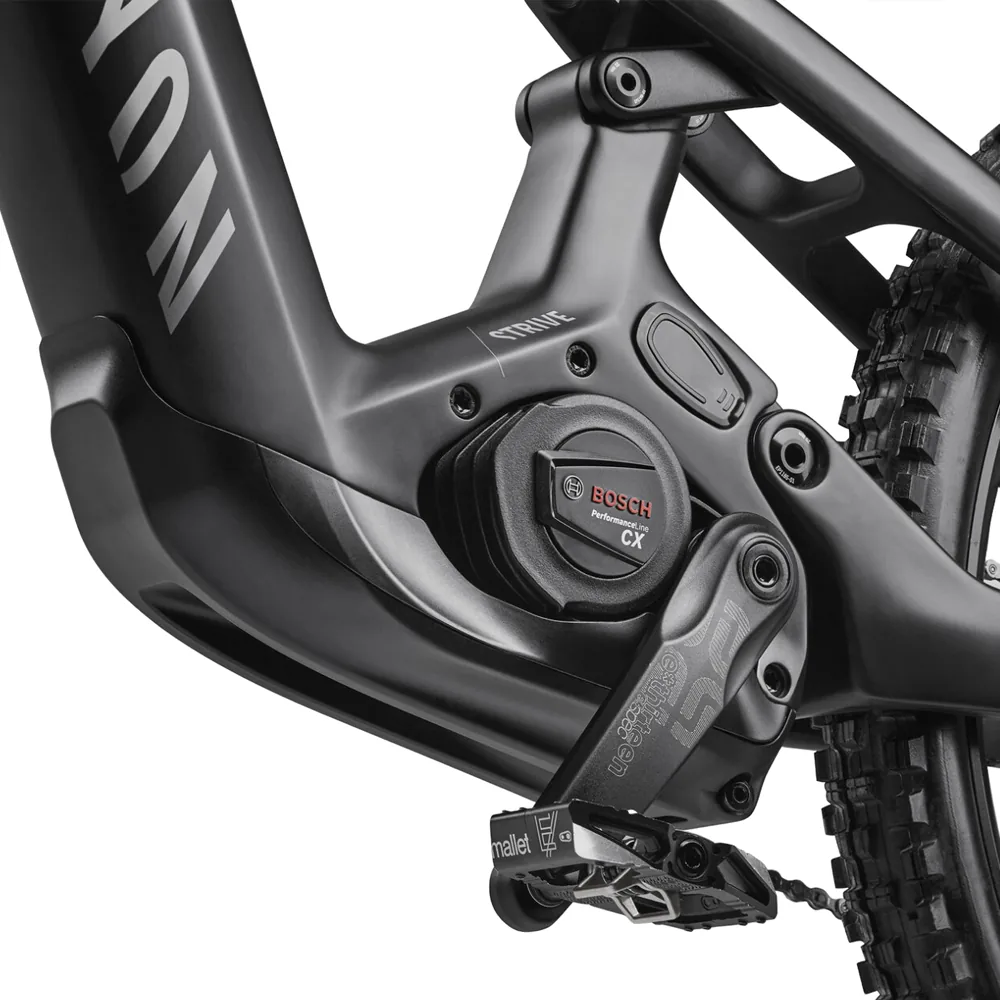

Peerless power delivery from the Bosch CX motor

The Bosch Performance Line CX motor is the favourite of e-enduro racers thanks to its 340% pedal assist and staggering 600 watts of peak power. Power delivery is smooth through every pedal stroke all the way up to 120 rpm, and the overrun feature ensures the motor keeps you rolling up rough, technical climbs.

Long-range integrated battery options

Whether you choose the lighter weight 625 Wh battery or the longer range 750 Wh version, every Bosch PowerTube battery is compact and delivers long-lasting power in a minimalist design. Seamlessly integrated into the Strive:ON frame, the battery can be charged within the bike or quickly removed and swapped out for uninterrupted riding.

Proven long-term durability

Developed together with our pro race mechanics, replaceable thread inserts protect the Strive:ON frame from irreparable damage at every major pivot point and make thread wear a simple fix. All pivot bearings are double sealed and treated with a proprietary grease fill to keep the pivots safe from the elements and the linkage moving smoother for longer.

SPECIFICATION :

Frame Canyon Strive:ON Axle dimension: 12x148 mm Material: Carbon (CF)

Rear Shock Fox Float X Evol

Suspension Fork Fox 38 Rhythm Grip Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 170 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm

Battery Depending on your selected configuration.

Motor Bosch Performance Line CX

Rear Derailleur Shimano DEORE M6100 Cage length: long

Chainguard Canyon GP0437-01 Chain guide

Shift Lever Shimano DEORE M6100

Cassette Shimano DEORE M6100 Number of sprockets: 12

Crank e*thirteen E-Spec Plus BOSCH

Chainring Chainring FSA Megatooth 36t

Chain Shimano CN-M6100 12s

Disc Brake SRAM Matchmaker Clamp

Disc Brake SRAM DB8

Disc Brake SRAM DB8

Brake Rotor SRAM Centerline Size: 200 mm

Brake Rotor SRAM Centerline Size: 220 mm

Wheel DT SWISS H 1900 Spline Hybrid 29 Rotor mount: IS 6-bolt Wheelsize: 29"

Wheel DT Swiss H1900 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Free hub: Shimano Hub Technology: Ratchet, standard Inner width: 30 mm Wheelsize: 27.5" Spokes: Straight Pull Rim material: Aluminium

Tyre Maxxis Minion DHR II 3C MaxxTerra Width: 2.4"

Tyre Maxxis Assegai 3C MaxxGrip Width: 2,5"

Thru Axle Canyon GP0255-01 Thru Axle Axle dimension: 12x148 mm

Stem Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm

Handlebar Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm

Grips Canyon G5

Saddle ERGON SM10 EMTB

Seatpost Iridium Dropper The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability. Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Battery Charger Bosch 4A

Trekking & City Pedals Iridium VP-536

Manuals and Accessories Canyon Small Box

Manuals and Accessories Wrench Tool 15mm

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Quick Start Guide
