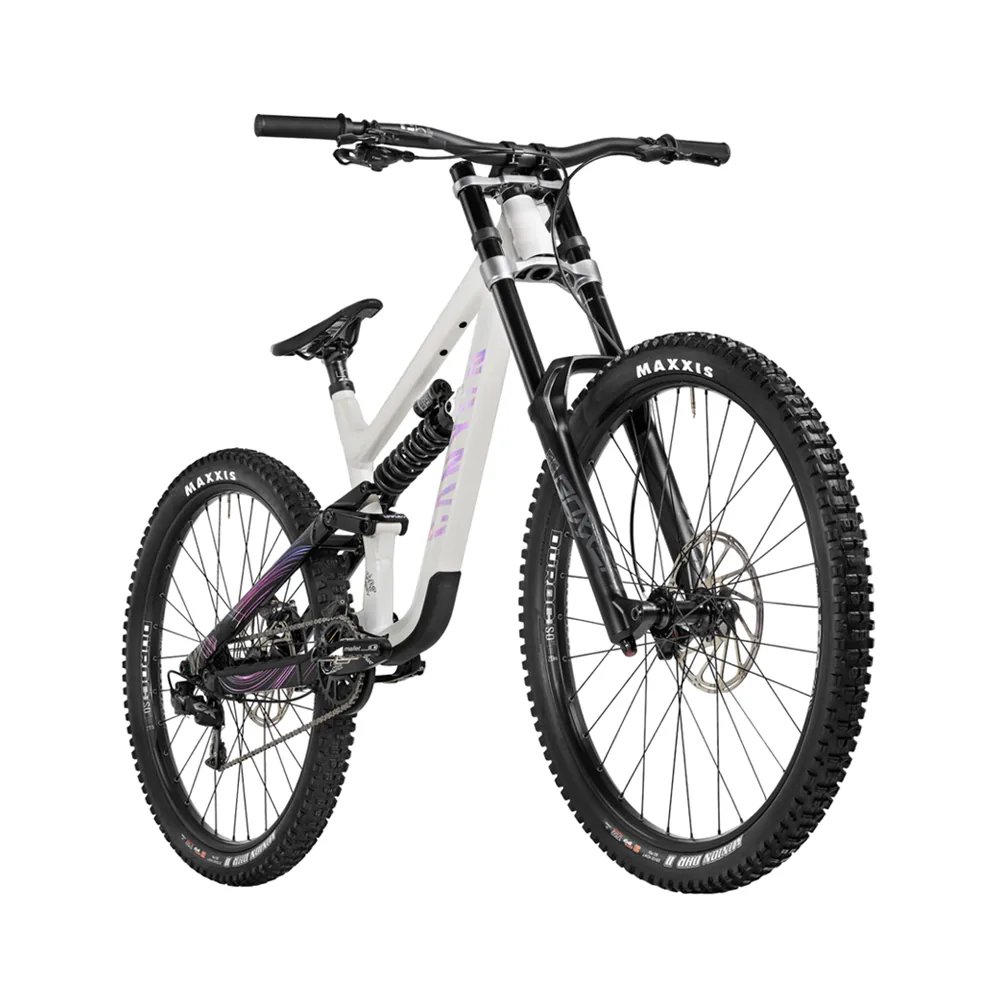

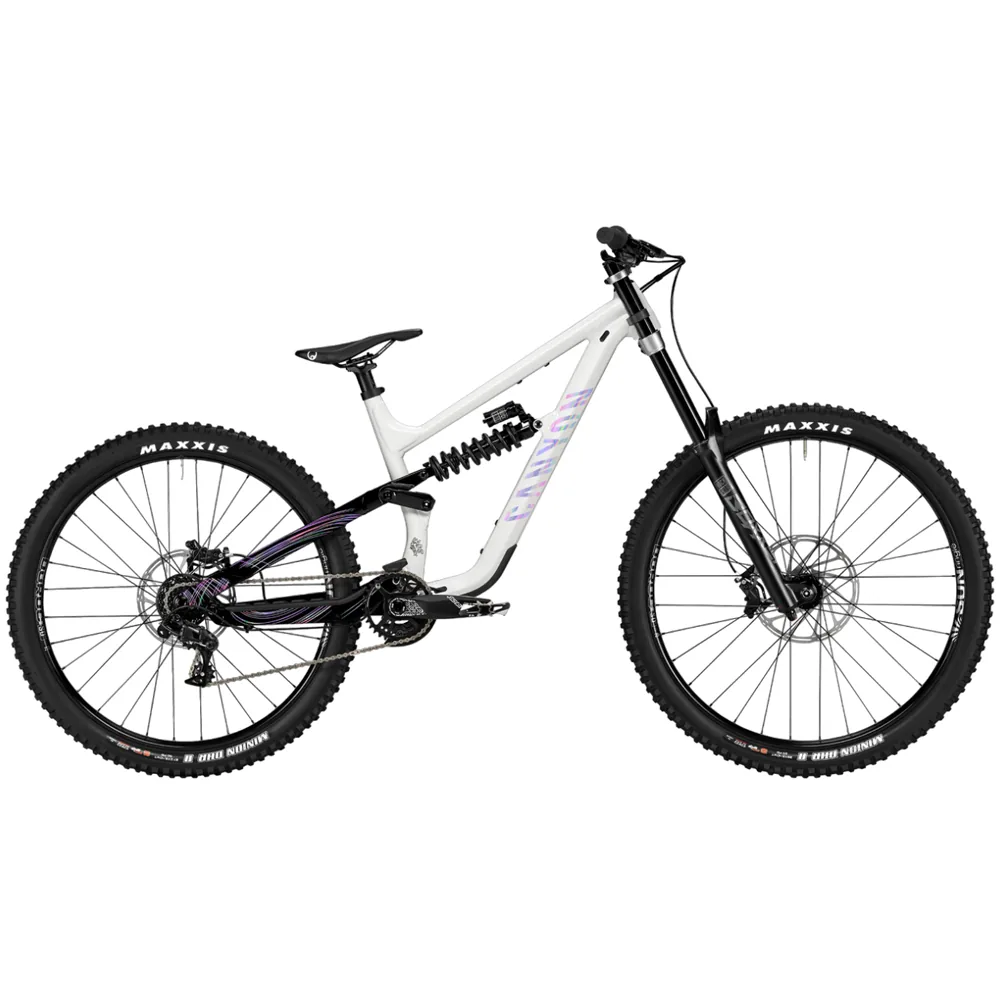

2023 Canyon Torque DH CLLCTV Mountain Bike

Product Description

2023 CANYON TORQUE DH CLLCTV MOUNTAIN BIKE

AL – metal rules

Meet the next generation of robust, high-performance aluminium frames. Like its carbon counterpart, the AL frame meets our Category 5 testing standards and is ready for the most demanding trails and biggest jumps. Thanks to its updated tube shapes, the new frame is 200 g lighter than its predecessor while still improving stiffness.

Next level capability

Ride faster and smoother on the most technical singletrack thanks to the Torque’s new progressive geo. Rocking a slacker head angle, steeper seat tube angle and a longer reach and wheelbase, the Torque AL doesn’t use the same flip chip as the CF model, but combines the advantages of both settings with a 63° head angle and a 77.5° seat tube angle.

Clever cable routing

The bike’s cables and lines run cleanly through a foam hose inside the front triangle. This eliminates cable rattle in technical terrain and protects your cables from the elements. The cables are then externally routed on the rear triangle for easier maintenance.

Freeride meets downhill

Kitted with a burly dual crown fork and a complete downhill spec, this Torque is an absolute beast. Whether you aspire to send it at the Fest series, huck gaps at Rampage or become the next great privateer on the DH circuit, this bike will get you down every track and over any gap.

SPECIFICATION :

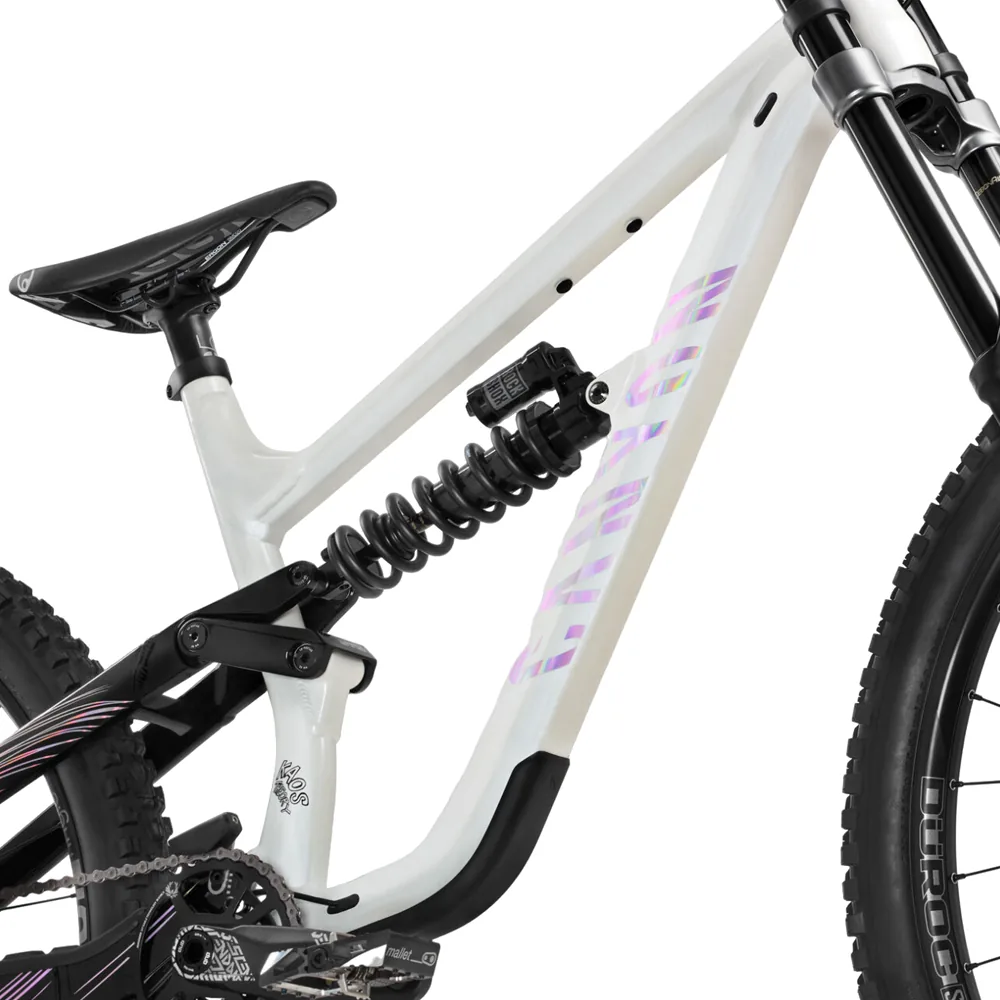

Frame Canyon Torque AL Aluminium long-travel freeride frame built for seasons-long hard riding at the bike park and in the big mountains. Frame category 5. Axle dimension: 12x148 mm Material: Aluminium (AL)

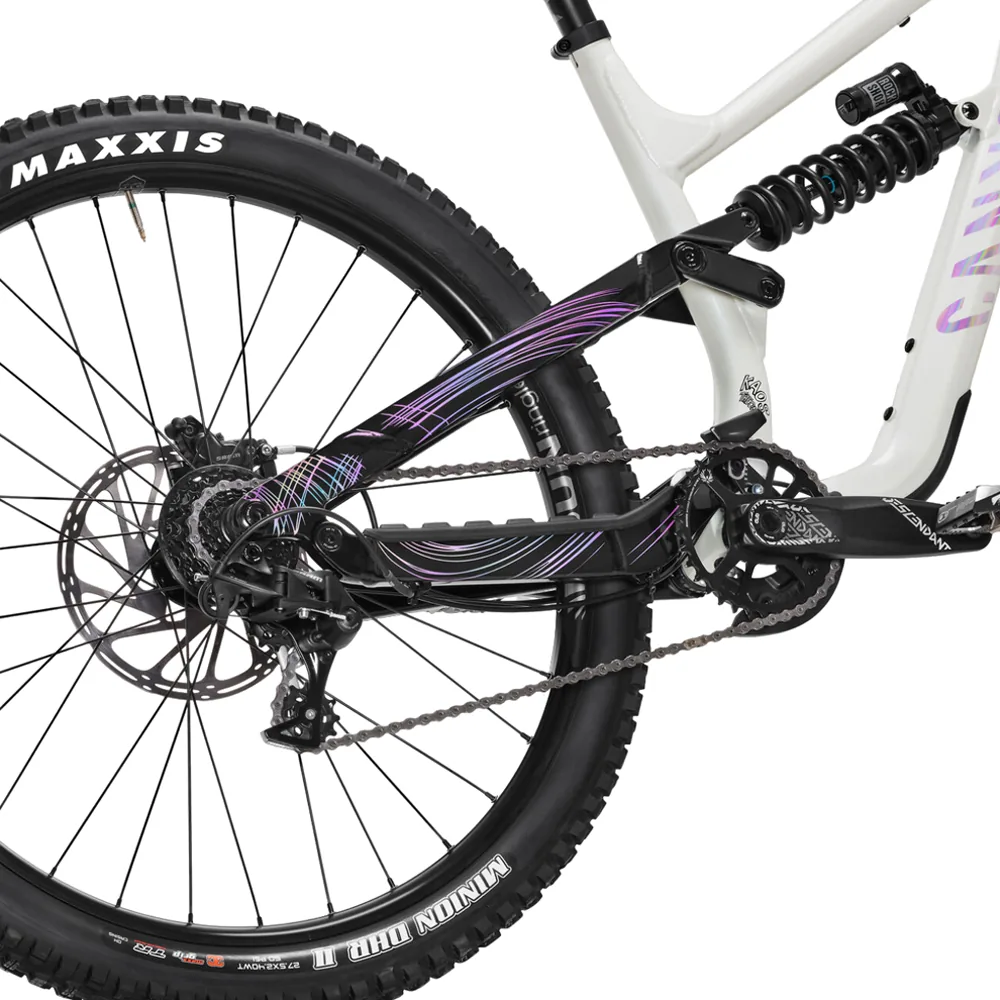

Rear Shock RockShox SuperDeluxe Select Spring: 350

Suspension Fork RockShox Boxxer Select RC 29" Travel: 190 mm Fork steer tube diameter: 1 1/8"

Rear Derailleur SRAM GX DH 7s Cage length: medium

Chainguard e13 Vario Compact Slider DMB

Shift Lever SRAM GX DH Trigger 7s

Cassette SRAM PG-720 DH 11-25 7s Number of sprockets: 7

Crank Descendant 6K Number of chainrings: 1

Bottom bracket SRAM BSA DUB Bottom bracket standard: BSA 73

Disc Brake SRAM Code R

Disc Brake SRAM Code R

Brake Rotor SRAM Centerline Rounded Size: 200 mm

Wheel Sun Ringle Duroc SH11 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Wheelsize: 27,5" Rim material: Aluminium

Wheel Sun Ringle Duroc Axle dimension: 20x110 mm Rotor mount: IS 6-bolt Wheelsize: 29" Rim material: Aluminium

Tyre Maxxis Minion DHR II 2.4" Width: 2.4"

Tyre Maxxis Minion DHR II 2.4" Wide Trail Width: 2.4"

Thru Axle Canyon GP0255-01 Thru Axle Axle dimension: 12x148 mm

Stem Canyon G5 G5 aluminium stem for double-crown forks. Developed with Canyon downhill pros, proven on the world’s toughest stages. Length: 45 mm. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm

Handlebar Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm

Grips Canyon G5

Saddle Ergon SMD20

Seatpost Canyon G5 Canyon G5 aluminium seatpost. Length: 300 mm. Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Pedals None included

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Canyon Small Box

Manuals and Accessories Quick Start Guide Torque M113
