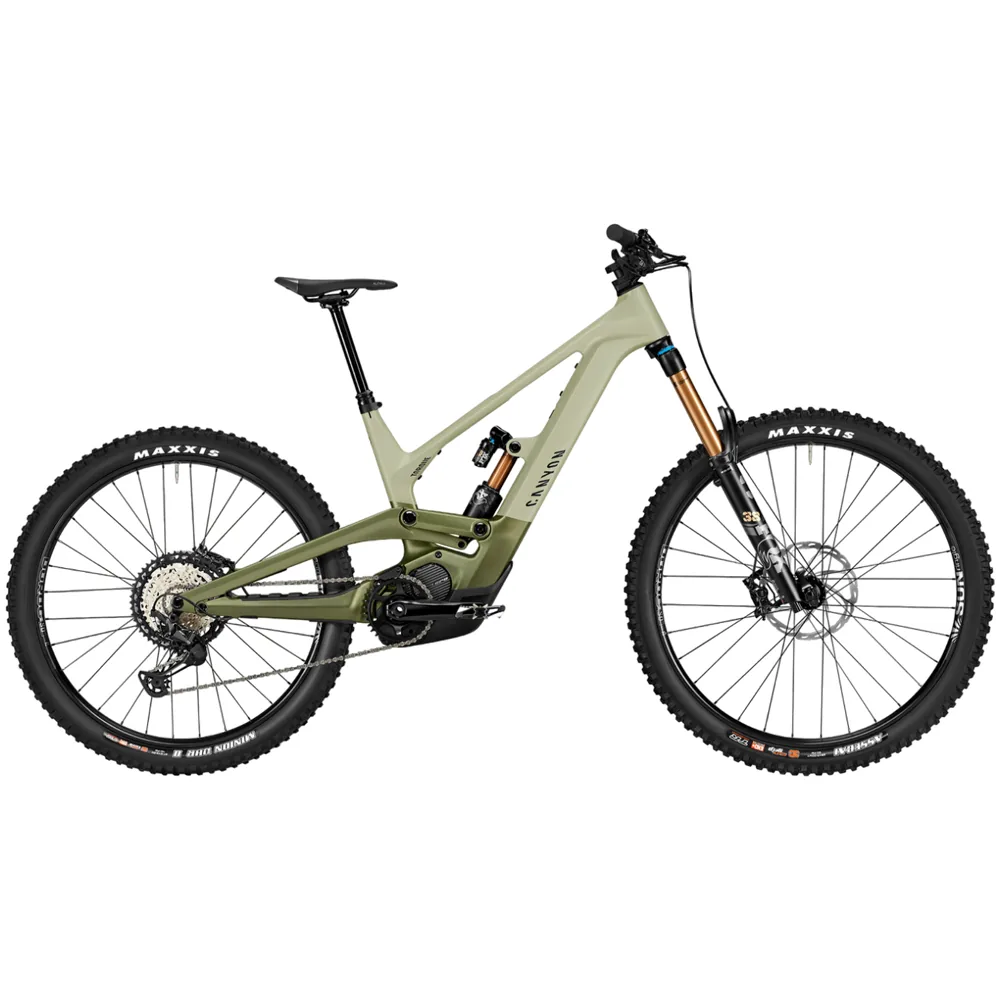

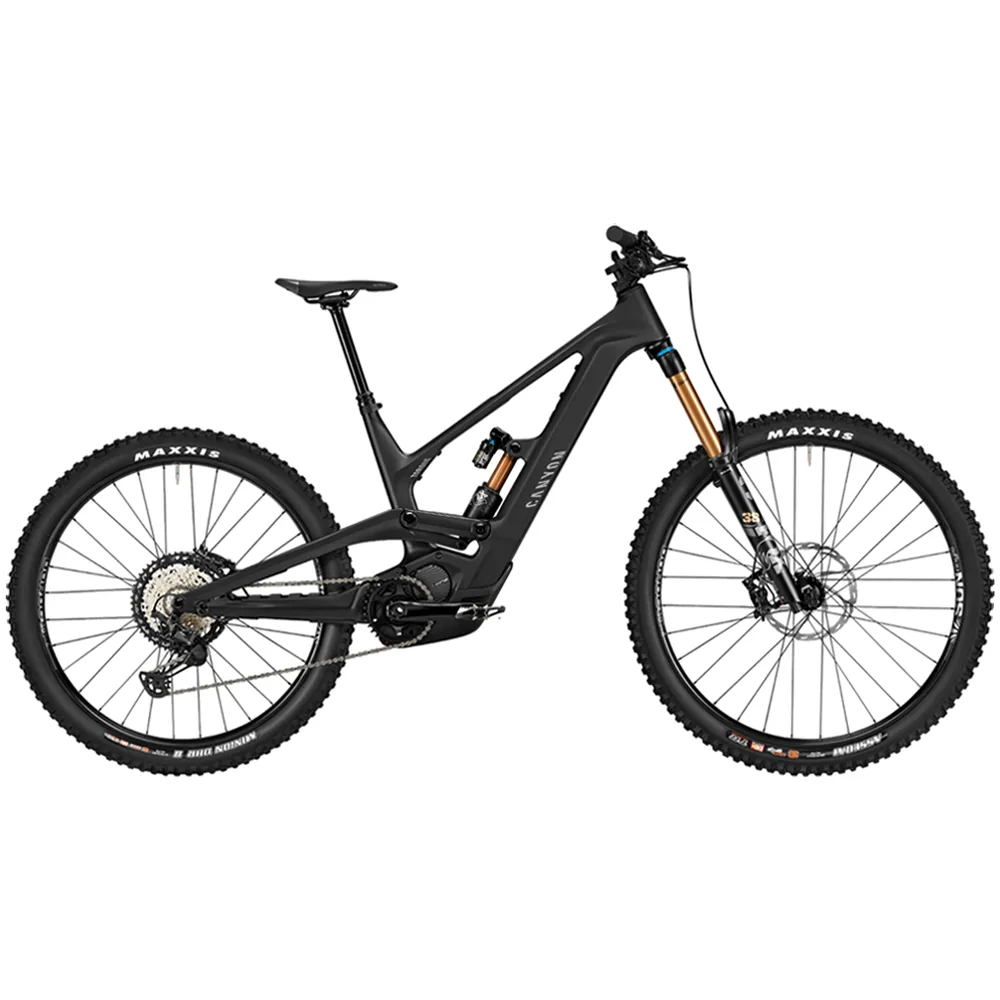

2023 Canyon Torque:ON CF 9 Mountain Bike

Product Description

2023 CANYON TORQUE:ON CF 9 MOUNTAIN BIKE

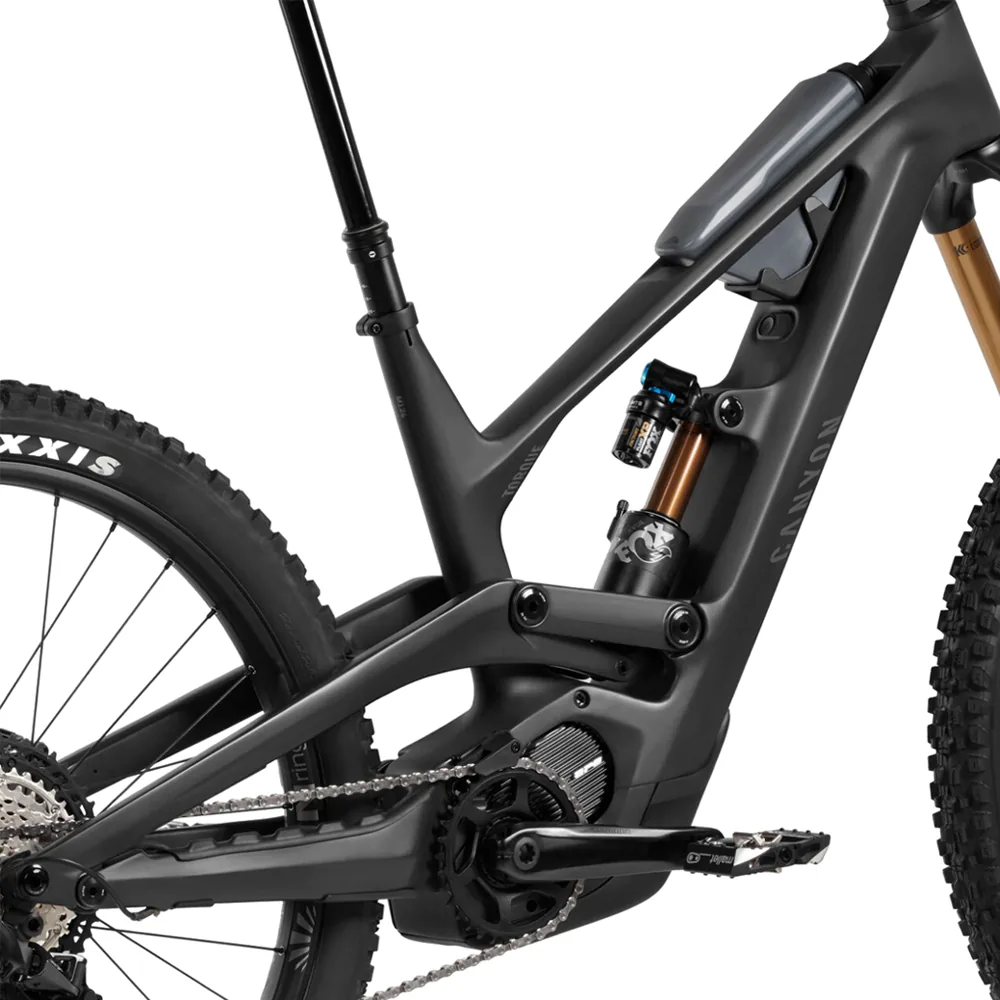

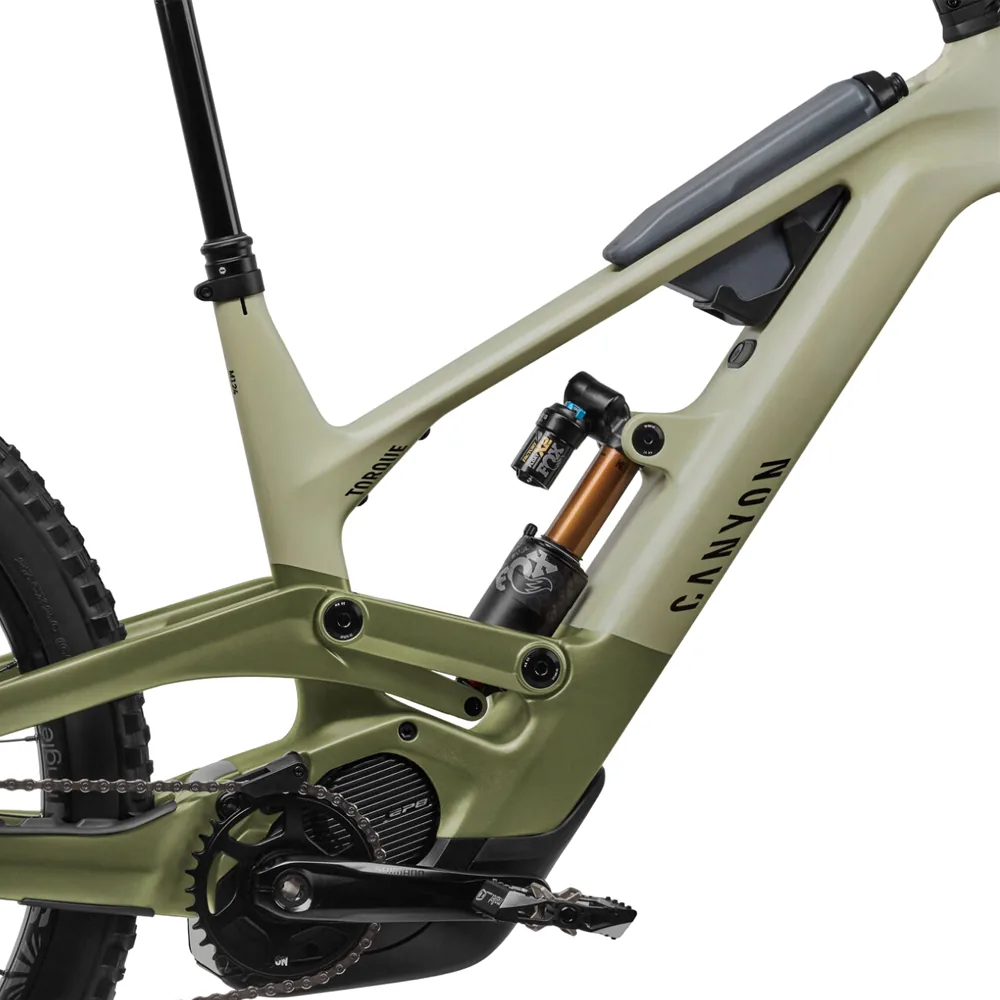

True Gravity Frame

Inspired by Downhill MTB and Motocross design, this full carbon frame features true gravity geometry and bombproof Category 5 strength to make it our toughest and most capable e-MTB ever. The low slung, responsive carbon chassis delivers on point handling so you can rail every turn and boost every jump.

Innovative Hydration Solution

A low slung gravity focussed frame is no place for a conventional water bottle and cage. But sending it can be thirsty work so we've integrated a sleek 650 ml water bottle behind the headtube. To keep the bottle secure during the biggest hits, every Torque:ON CF will ship with bottle, cage and a shred proof security strap.

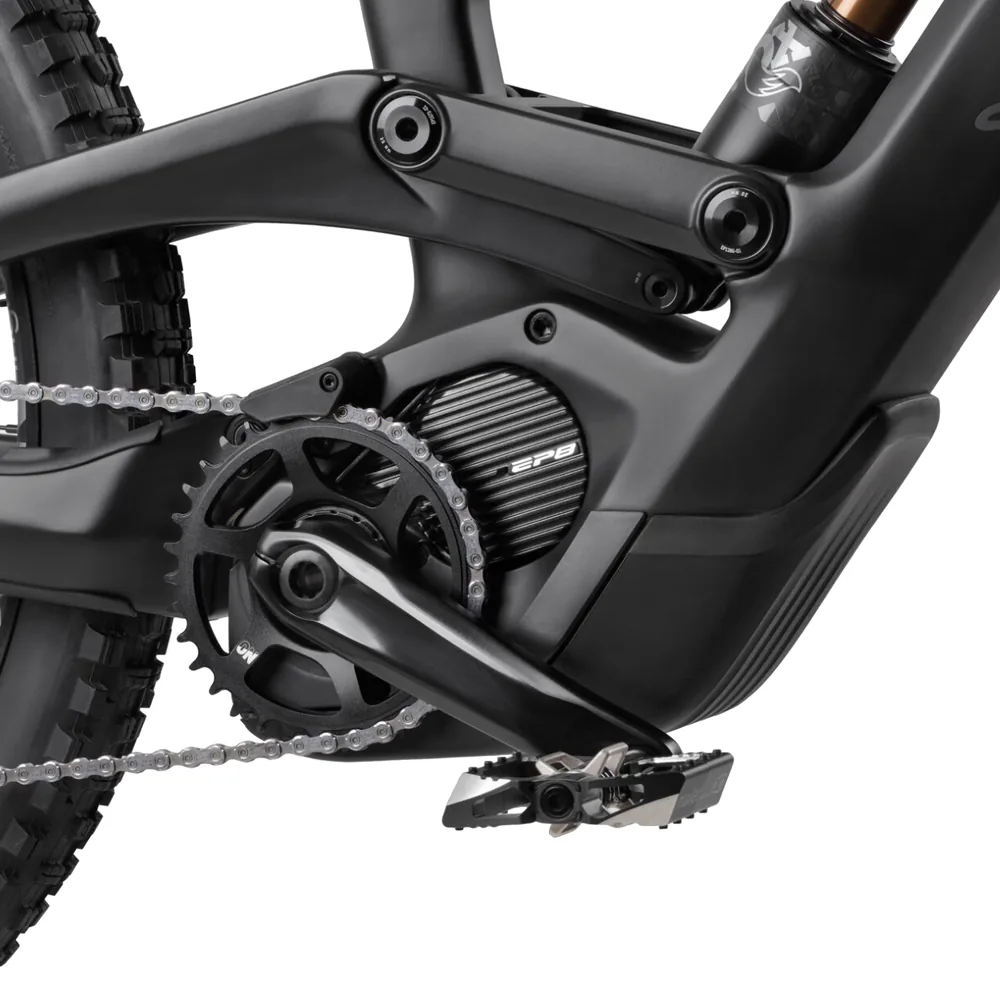

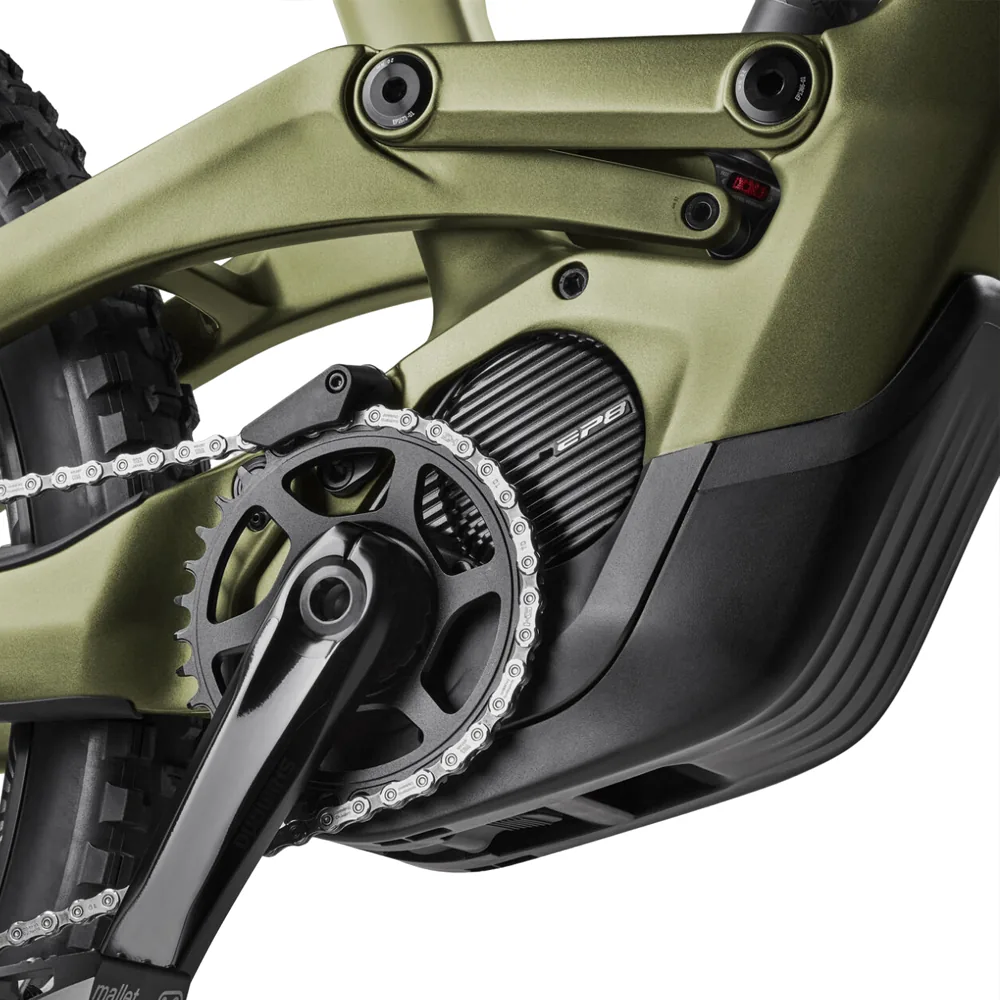

Shimano EP8 Motor

This bike is powered by Shimano’s EP8 motor. At 2.6 kg, the magnesium-clad Shimano motor is one of the lightest full-power motors on the market. It’s also one of the most powerful, with 85 Nm of peak torque that effectively quadruples your pedaling power and makes punching up steep climbs that much easier. The result? More laps and more fun.

More Miles. More Stoke.

We’ve equipped the Torque:ON with one of the biggest (and smartest) power plants in the world. Our Canyon-developed 720 and 900 Wh batteries boost your mileage and stoke factor by 15 to 42% respectively over standard full-size batteries. Less charging, more shredding.

SPECIFICATION :

Frame Canyon Torque[ON] CF Axle dimension: 12x148 mm Material: Carbon (CF)

Rear Shock Fox X2 Factory

Suspension Fork Fox 38 Factory Grip2 Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 180 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm

Battery Canyon BT002

Motor Shimano Steps EP8 Motor

Rear Derailleur Shimano DEORE XT M8100 Cage length: long

Chainguard Canyon EP1189-01 Chain Guide Nut

Chainguard Canyon GP0397-01 Chainguide

Chainguard Canyon EP1539-01 Chain Guide

Shift Lever Shimano DEORE XT M8100

Cassette Shimano DEORE XT M8100 Number of sprockets: 12

Crank Shimano STEPS HOLLOWTECH e-MTB crank arms

Chain SHIMANO M8100 12-speed

Chainring Canyon EP1110-01 Chainring 34T

Disc Brake Shimano DEORE XT M8120

Disc Brake Shimano DEORE XT M8120

Brake Rotor Hayes D-Series Size: 203 mm

Wheel SunRingle Duroc SD37 Comp 15x110 Rotor mount: IS 6-bolt Wheelsize: 29"

Wheel SunRingle Duroc SD42 12x148 Rotor mount: IS 6-bolt Wheelsize: 27.5"

Tyre Maxxis Minion DHR II 27,5" x 2.60 WT Width: 2.6"

Tyre Maxxis Assegai 3C MaxxGrip Width: 2,5"

Thru Axle Canyon Quixle Thru Axle Axle dimension: 12x148 mm

Stem Canyon:ON ST0031 Canyon E-MTB stem. Length: 45 mm Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm

Handlebar Handlebar HB0057 Clamping diameter: 35,0 mm Width: 800 mm Rise: 30 mm

Grips Canyon Lock-On

Saddle Fizik Gravita Alpaca X5

Seatpost Iridium Dropper The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability. Clamp diameter: 30,9 mm Material: Aluminium (AL)

Light Reflector Set

Battery Charger Canyon BC001

Trekking & City Pedals Iridium VP-536

Manuals and Accessories Canyon Small Box

Manuals and Accessories Wrench Tool 15mm

Manuals and Accessories Canyon Smallbox

Manuals and Accessories Quick Start Guide 034-V02
