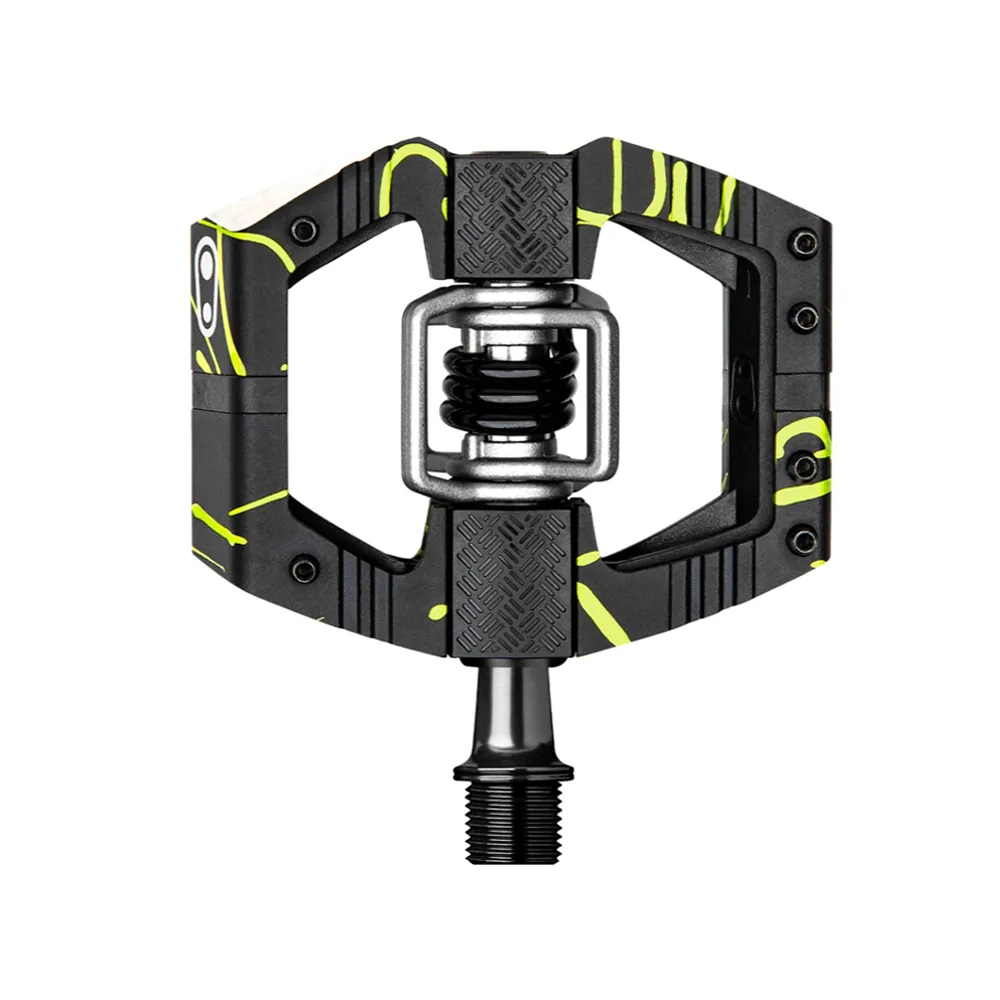

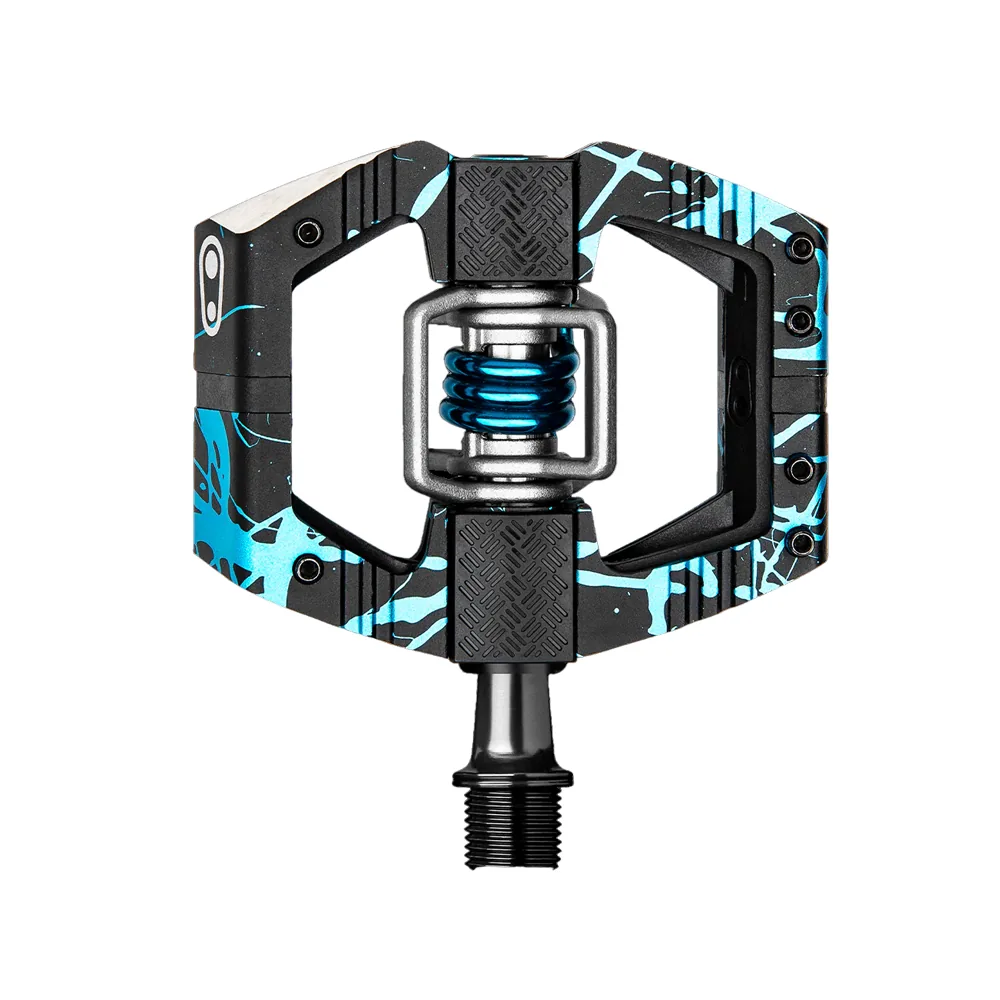

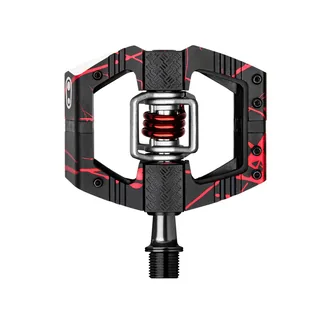

Crankbrothers Mallet Enduro LS Set

Product Description

CRANKBROTHERS MALLET ENDURO LS SET

FEATURES

• Concave platform for secure foothold

• 6 adjustable pins per side for grip

• Integrated traction pad technology to optimize the shoe/pedal interface

• Ribbed body for better traction when unclipped

• Chamfered edges to reduce rock-strikes

• 57mm q-factor for increased shoe clearance and control

• 4-sided entry / superior mud shedding

• Customizable float & release angle

• Premium bearing & double seal system

• Owners Manual

SPECIFICATIONS

BODY MATERIAL 6061-T6 Aluminum

BODY DIMS (L X W) 94mm x 75mm

WING MATERIAL 17-4PH Stainless

SPINDLE LENGTH 57mm

TRACTION PINS 6 adjustable per side

PIN LENGTH 8mm

INNER BEARING TYPE Igus LL-glide bearing

OUTER BEARING TYPE Enduro MAX cartridge bearing

ENDCAP Hex alloy

SPINDLE MATERIAL Forged SCM 435 Chromoly Steel

SPRING MATERIAL 300 series stainless steel

MAX RIDER WEIGHT No restriction

WEIGHT 424g per pair

INCLUDED CLEAT TYPE 15° / 20° Standard Release, 6° Float

CLEAT NOTICE Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

WARRANTY 5 years
